Irregular Cast Alnico Magnet , Alnico 8 Magnet Complex shapes Magnet
- T/T L/C D/P D/A
- 7 days
You May Like
-
Bullet Cast Alnico Magnet , Alnico 5 Pencil Magnet For Instruments
-
SmCo5 Samarium Cobalt Magnet , Rare Earth Magnet For Camera
-
Rare Earth Samarium Cobalt Magnet , Sm2Co17 Ring Magnet Magnetic
-
Block Samarium Cobalt Magnet For DC Brushless Motors / Engine
-
Rare Earth Samarium Cobalt Magnet , Disc Magnet For Sensors
-
Sintering Samarium Cobalt Magnet , Tile Magnet For Stepper Motor
Product Details
| Brand Name | ZJMAG | Place of Origin | China | |
Product Description
Certification:ISO 9001: 2008

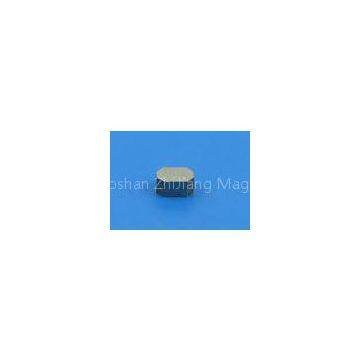

Irregular Cast Alnico Magnet , Alnico 8 Magnet Complex shapes Magnet
Quick Detail:
1. Comparatively high magnetic properties
2. Cast surface or partial ground surface
3. Complex shapes
Applications:
Magnetic Instruments
Holding magnets
Sensors and transformers
Security systems
Relays
Chucks
Instrumentations
Magnetic switches
Safety Controls
Motors and Generators
Receivers
Telephones
Microphones
Bell ringers
Loudspeakers
Specifications:
|
Physical Properties of Cast Alnico |
|
|
Curie Temperature (℃) |
760-890 |
|
Max. Operating Temperature (℃) |
450-550 |
|
Resistivity (μohm.cm) |
47-54 |
|
Hardness (Hv) |
520-630 |
|
Density (g/cm³) |
6.90-7.30 |
|
Relative Recoil Permeability (μrec) |
1.70-4.70 |
|
Saturation Field Strength (kOe,kA/m) |
2.7-6.3/215-500 |
|
Temperature Coefficient of Br (%/℃) |
-0.025 ~ -0.02 |
|
Temperature Coefficient of iHc (%/℃) |
+0.01 ~ +0.03 |
Competitive Advantage:
1. High Temperature resistance
2. Comparatively high magnetic properties
3. Dimensional Stability
Customized service as well as OEM, just let us know your request or show us your drawings, we will provide high quality and best service.
