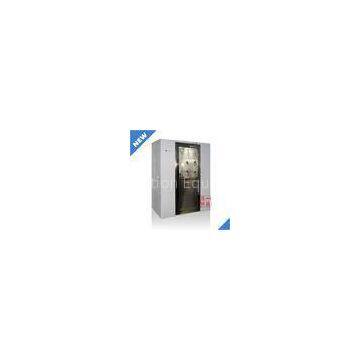

Medical 4PCs HEPA Filter Cleanroom Air Shower with 80019001960mm Area

Delivery Time:5-10 days
Certification:CE, ISO

Medical 4PCs HEPA Filter Cleanroom Air Shower with 800×1900×1960mm Area

Quick Details:

1. Name: YJ-S-1CS Outside Cold Steel Air Shower

2. Brand Name: Yijing

3. Material: Outside Cold Steel, Inner Side Stainless Steel SUS304

4. Feature: Automatic Control

5. Outside Dimension: 1400×1000×2100(mm)

6. Certificates: CE, ISO

Descriptions:

Applicable Number of People: 1 person

Materials: Outside Cold Steel, Inner Side SUS304

Thickness: 1.2mm

Number of Nozzle:12(Two Sides) Stainless Steel 304

Mouth Diameter of Nozzle: Φ30mm

Speed of Air Flow at the Nozzle: >25m/s

Dimension of High Efficiency Air Filter (mm): 600×600×120

Dimension of Air Shower Area (mm): 800×900×1960

Outside Dimension (mm): 1400×1000×2100

Lock: Electronic Interlock

Pre-Filter: 600*350*10(mm), 2PCs, synthetic fiber with aluminum

HEPA Filter: 2PCs, 600*600*120(mm)

FAN: 2PCs, Power: 0.55KW, Air Volume: 1500/PC, Air Pressure: 1200Pa

UV Lamp: 1PCs, Power: 20W

Shower Time: 0-99s(adjustable)

HEPA Filter Efficiency: H13, 99.995%@0.38um

Maximum Power Consumption: 1.1 KW

How to use Air Shower?

First, enter into the work area and open the door. The door is auto-closed after entering into the air shower. Second, automatic shower starts, then powers off when finishing. Open the other side of the door and enter clean area. Lastly, the door is auto-closed.

Applications:

1. As the filtration equipment through the action of high strength air flow, the single person air shower room is often used in conjunction with clean room. It can remove the impurity such as dust on the working staff before they go into the clean room. Each side of our product has six nozzles with a wide distribution range. With the mouth diameter of 30mm, the nozzle can spray out the air quickly and the air shower area can be up to 800×900×1960mm. The air shower time can be adjusted in the range of 0 to 99s. Thus, the air shower effect can be assured to be the best level, which guarantees the cleanliness of the clean room completely.


2.The single person air shower room is assembled with foam insulation color siding and aluminum component. It is equipped with centrifugal fan and the primary and high efficiency air filters. The product has the features of elegant appearance, compact structure, easy maintenance and simple operation. Meanwhile, we can produce the people and cargo air shower room with the electronic interlocking and infrared sensing device according to customers\' needs.

Specifications

Model	YJ-S-1CS	YJ-S-2CS	YJ-S-3CS	YJ-S-4CS
Applicable Number of People	1	2-4	4-5	5-6
Air Shower Time	0- 99s (Adjustable)
Number of Nozzle	12 (Two Sides)	24 (Two Sides)	36 (Two Sides)	48 (Two Sides)
Mouth Diameter of Nozzle	Φ 30 mm	Φ 30 mm	Φ30 mm	Φ30 mm
Speed of Air Flow at the Nozzle	>25m/s	>25m/s	>25m/s	>25m/s
Dimension of High Efficiency Air Filter (mm)	600×600×120	600×600×120	600×600×120	600×600×120
Dimension of Air Shower Area (mm)	800×900×1960	800×1900×1960	800×2900×1960	800×3900×1960
Outside Dimension (
