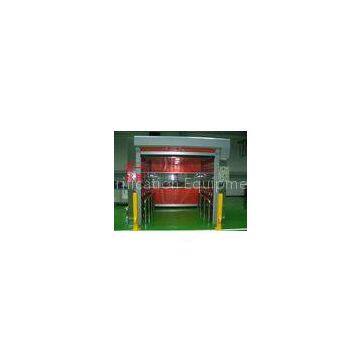

Pharmaceutical Personnel Air Shower With Automatic Control, 99.995% Efficiency

Pharmaceutical Personnel Air Shower with Automatic Control, 99.995% Efficiency

Quick Details:

1. Name: Fast Shutter Rolled Stainless Steel Cargo Air Shower

2. Brand Name: Yijing

3. Material: All full set Stainless Steel SUS304

4. Feature: Automatic Control

5. Dimension: Can be Customized

6. Certificates: CE, ISO

The functions of air shower room:

1. To eliminate the polluting particles, dust and bacilli from the clothes and things;
2. To serve as insulation facility between purification room, sterilized room and polluting areas.

Features:
1) Entire stainless steel baseboard
2) HEPA filter with efficiency 99.995% @ 0.3um
3) Toughened glass for the door\'s window
4) Fully-automatic infrared induction blowers and showers
5) LED display
6) Adjustable range: 0-99s
7) Doors will close automatically when activated
8) The closer brand is \"OUBAO\"
9) Stainless steel nozzle
10) Door control interlocking,has good airtight
11) The air velocity is greater than 25m/s
12) Low noise level
13) Arc corner inside to keep clean
14) Three sides blow wind

15) Customers can choose the door guarding system, card reader

How to use air shower?

First, enter into the work area and open the door. The door is auto-closed after entering into the air shower. Second, automatic shower starts, then powers off when finishing. Open the other side of the door and enter clean area. Lastly, the door is auto-closed.

Applications:

1. As the filtration equipment through the action of high strength air flow, the single person air shower room is often used in conjunction with clean room. It can remove the impurity such as dust on the working staff before they go into the clean room. Each side of our product has six nozzles with a wide distribution range. With the mouth diameter of 30mm, the nozzle can spray out the air quickly and the air shower area can be up to 800×900×1960mm. The air shower time can be adjusted in the range of 0 to 99s. Thus, the air shower effect can be assured to be the best level, which guarantees the cleanliness of the clean room completely.


2.The single person air shower room is assembled with foam insulation color siding and aluminum component. It is equipped with centrifugal fan and the primary and high efficiency air filters. The product has the features of elegant appearance, compact structure, easy maintenance and simple operation. Meanwhile, we can produce the people and cargo air shower room with the electronic interlocking and infrared sensing device according to customers\' needs.

Specifications
