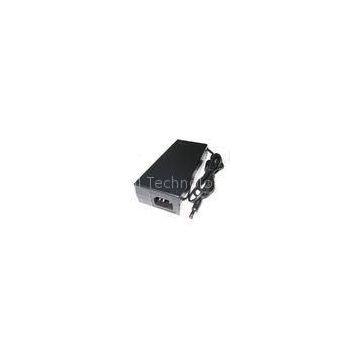

UL60950-1 100V AC Apple Macbook Desktop Power Adapter 30V 1A 30W

Name: UL60950-1 100V AC Apple Macbook Desktop Power Adapter 30V 1A 30W
Brand: STARWELL
SKU: 148975890
Availability: InStock

Shenzhen Starwell Technology Co., Ltd.

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

STARWELL

Place of Origin:

China

Model Number:

SW-00240200-S10

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Brand Name STARWELL

Place of Origin China

Model Number SW-00240200-S10

Delivery Time:10-15 days
Certification:UL,CE,ROHS, FCC,GS,SAA,C-TICK

UL60950-1 100V AC Apple Macbook Desktop Power Adapter 30V 1A 30W

Short Description:

> Output: 30V 1A

> Effiency: 85% minimum

> Color: Black or white

> Net Weight: 250g

> AC inlet: C8, C6, C14 optional

> DC jack: 5.5*2.1*10mm / 5.5*2.5*10mm

> Dc cable length: 1.5 meters / 2 meters available

> Input voltage range: 100~240VAC

> Ripple and Noise: 80mV maximum

> Dimensiont:110(H)*51.5(W)*33.5(H)mm

> Certificate: UL,CE,FCC,GS, SAA,C-TICK,CB,KC certificates.

> Safety protection: over load, over voltage, short ciruict, open load protection.

Specifications

Input Rated Voltage :	100Vac~240Vac
Input Frequency Range:	47Hz~63Hz
Input Inrush Current :	0.8A max
Efficiency :	85%(MIN)at Rated Voltage
Output:	30V 1A
Output power :	30W
Ripple and Noise :	<150Mv at full road with 20MHz bandwidth
Turn On Delay Time:	<3S (AC:110V and full load)
Safety protection :	over voltage and current protection.
Leakage Current:	<5mA
USB connector:	5.52.110mm / 5.52.510mm
Operating Temperature:	0°C----+60°C
Storage Temperature:	-20°C----+85°C
Certificate:	CE GS TUV UL/CUL FCC ROHS,SAA,PSE,C-TICK
Safety Standard :	EN60950-1 UL60950-1 ESD (EN61000 3-3) CAS (60950 ITE/TE) FCC Part 15 subpart B Class B AN/NZS CISPR 22:2006
Application:	For battery charger, mobile phone, cell phone, iphone etc…

Model List:

24W~36W SERIES
Model	Input Voltage	Power	Output Voltage	Output Current	AC Inlet Type
SW-00240200-S10	100-240V AC	24W	12V	2A	C8,C6
SW-00150160-S10	100-240V AC	24W	15V	1.6A	C8,C6
SW-00240100-S10	100-240V AC	24W	24V	1A	C8,C6
SW-00090300-S10	100-240V AC	27W	9V	3A	C8,C6
SW-00240125-S10	100-240V AC	30W	24V	1.25A	C8,C6
SW-00300100-S10	100-240V AC	30W	30V	1A	C8,C6
SW-00XXXYYY-S10	SW-00XXXYYY-S10 ( XXX=090-240 means the output voltage is 9-
24V, YYY=001-600, means the output current is 0.01A-6A) .
UL number: E352029
