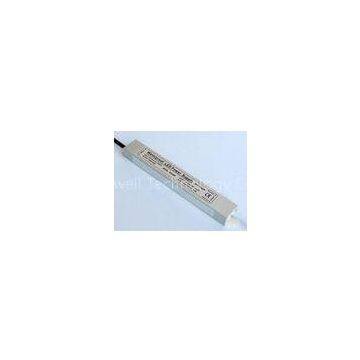

15V 300Ma 5W Waterproof Led Driver IP67 Standard Constant Current Led Power Supply

FOB Price

Negotiable / Carton

1 Carton(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	STARWELL		Place of Origin	China
Model Number	WTF-E30300A

Delivery Time:10-15 days
Certification:UL,CE,ROHS, FCC,GS,SAA,C-TICK

15V 300Ma 5W Waterproof Led Driver IP67 Standard Constant Current Led Power Supply

Short Features :

> Output type : constant current type

> input voltage : 100~240VAC

> output : 15 - 30 V 300Ma 5W ~ 8W

> Ripple and Noise : 200mV maximum

> PF : > 0.90

> Effiency : 85% minimum

> Gross Weight : 100g

> Dimension : 60(H) * 30(W) * 20(H)mm

> material : aluminum case

> Certificate : UL,CE,FCC,GS, SAA,C-TICK,CB,KC certificates .

> Safety protection : over load , over voltage , short ciruict , open load protection .

Specifications

Input Rated Voltage :	100Vac~240Vac
Input Frequency Range :	47Hz~63Hz
Input Inrush Current :	1.8A max
Efficiency :	85%(MIN)at Rated Voltage
Output :	15 - 30 V 300Ma 5W ~ 8W
Output power :	5W ~ 8W
Ripple and Noise :	<150Mv at full road with 20MHz bandwidth
Turn On Delay Time :	<3S (AC:110V and full load)
Safety protection :	over voltage and current protection.
Leakage Current :	<5mA
Output typer :	Constant voltage
Operating Temperature :	0°C----+60°C
Storage Temperature :	-20°C----+85°C
Certificate :	CE GS TUV UL/CUL FCC ROHS,SAA,PSE,C-TICK
Safety Standard :	EN 55015:2006; EN 61547:1995+A1:2000 ;EN 61000-3-2:2006; EN61000-3-2:1995+A2:2005; EN 61347-1:2008 EN 61347-2-13:2006
Application :	For led light , led strip , led down light etc….

MODEL LIST :

CONSTANT CURRENT IP 67 LED DRIVER
Model	Input Voltage	Output Power	Output Voltage	Output Current	Power Factor	Dimension
WTF-E04300A	100-240V AC	1*3W	2-4V	300mA	0.95	603020mm
WTF-E12300A	100-240V AC	3*1W	6-12V	300mA	0.95	603020mm
WTF-E04700A	100-240V AC	1*3W	2-4V	700mA	0.95	603020mm
WTF-E30300A	100-240V AC	5-8*1W	15-30V	300mA	0.95	603020mm
WTF-E36300A	100-240V AC	8-10*1W	21-36V	300mA	0.95	653020mm
WTF-E40330A	100-240V AC	10-12*1W	24-40V	330mA	0.95	653020mm
WTF-E21600A	100-240V AC	13W	12-21V	600mA	0.95	753020mm
WTF-E65300A	100-240V AC	12-18*1W	36-65V	300mA	0.95	1203020mm
WTF-E90300A	100-240V AC	18-25*1W	54-90V
