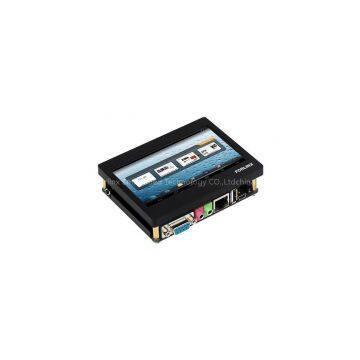

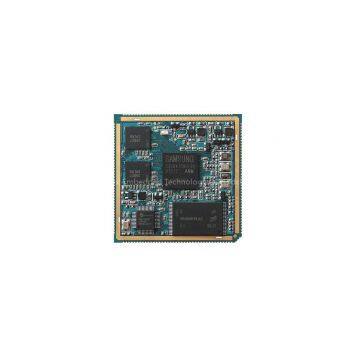

ARM11 OK6410-B Embedded Board/evaluation Board/single Board Computer With 256M 1G NANDFLASH

OK6410-B is small, compact, stable and with multi-interfaces, high integration and high performance
In terms of size, it’s small and compact, less than palm size: length*width: 105mm*81mm

Professional high-speed PCD design
High performance components selected
Strict tests in manufacture process

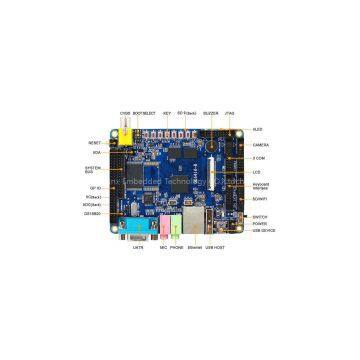

 4 serial interfaces, 1 Ethernet interface, 1 USB Host, 1 USB OTG, 1 SD card slot, 1 CVBS interface, and so on.

HARDWARE FEATURES
CPU: Processor: Samsung S3C6410
Kernel: ARM 1176JZF-S
Main frequency: 533MHz/667MHZ
RAM: 256M DDR
FLASH: High-speed and stable SLC 1G NAND FLASH
Clock: 12MHz, 48MHz, 27MHz, 32.768KHz clock source
Voltage: Power supply: 5V
Interfaces: High quality connectors to guarantee a durable and reliable operation.
Reset: One reset button and 8 separated (interrupt) buttons.
DIP Switch: 4-bit DIP switch for setting system start mode.
Serial Port: 4 serial ports: one 5-line RS232 level serial port(DB9 female socket);
                            three 3-line TTL level serial ports(20pin 2.0mm connector)
Ethernet: 1x 100M Ethernet, DM9000AE, with connection and transfer indicators.
USB HOST: 1x 1.1 USB Host interface, support mouse, U-disk, etc.
USB OTG: 1x 2.0 USB slave interface, support to connect Mini-USB socket with PC.
SD Card: 1x high-speed SD card slot, and  support SD memory and SDIO function.
WIFI: 1x WIFI port
Audio:  2x 3.5mm standard stereo audio sockets:1 green output socket to connect earphone, pink input socket to connect microphone
LCD: Support 4-line resistive touch panel.
CVBS: 1-channel CVBS output interface(PAL / NTSC).
Camera: 1x CMOS camera interface(10*2 pin, 2mm connector), support ITU-RBT601/656 8-bit mode.
RTC: on-board real time clock with back-up battery to keep time on when power off.
JTAG: 1x JTAG interface, 10*2 pin connector
Temperature Sensor Interface: One 1-line digital temperature sensor interface(DS18B20 module optional).
Infrared Interface: 1x Infrared interface
LED: 4x LED
Buzzer: 1x Buzzer
Expansion Port: 2x SPI, 2x DA, 38x GPIO, 7x Interrupt port, 8 x AD, IIC Interface.

Linux 3.0.1
Linux Software Features

Cross-compiler: arm-linux-gcc-4.3.2.tgz
Flashing Method:
    1. Flash image file to NandFlash via USB(bootloaded by SD card)
    2. Flash image file to NandFlash via SD card, appropriate for mass production and system updating;
    3. Support Windows 7 OS
 U-boot
  Version: U-Boot-1.1.6
  NAND boot
  Support USB OTG 2.0 download
  Support uboot.bin, kernel zImage and file system flashing via command lines.
 mmc.bin
  Support SD card flashing.
  Support SD card flashing (cramfs (Linux file system), and yaffs2 (Android System)).
  Support USB OTG2.0 flashing (Uboot, kernel and file systems).
 Linux Kernel
   Version: Linux-2.6.28, Linux-2.6.36.2, Linux-3.0.1
   File system support: YAFFS2/CRAMFS/NFS/UBIFS/NFS/FAT32, etc.
   Watchdog driver
   RTC driver
   4x LED driver
   6x user buttons driver
   SPI driver
   PWM buzzer driver
   ADC driver
   CPU with touch panel controller driver
   LCD driver  (Size: 3.5", 4.3", 5'', 5.6 '', 7", 8", 10.4'')
   USB Host driver: support U-disk, bluetooth, USB WIFI, USB 3G devices, etc.
   USB mouse and keyboard
   Universal USB camera
   SD card driver
   3G driver
   MFC driver
   CAN driver
   485 driver
   4-serial port driver
   SD WiFi driver
   USB WiFi driver
   Audio driver (WM9714: ALSA interface)
   Ethernet(DM9000) driver
   CMOS camera, TV-OUT driver
   USB to serial port driver
   Matrix keyboard driver
   IR Receiver driver
   Temperature sensor driver
   Frame Buffer driver supports Double Buffering
 Busy Box   Version: busy box-1.13.3
 Command Line Test Program
   ADC test program
   Key test program
   CMOS camera test program
   LED test program
   PWM buzzer test program
 Image Display
   Support 320*240, 480*272, 640*480, 800*480, 800*600, 1024*768, etc
 Graphic System
   Qtopia-2.2.0: classical embedded graphic interface system will run automatically when Linux boots. This graphic interface system could be controlled by  touch panel or USB mouse. The touch panel function is defaulted.
   Qt/E-Extended-4.4.3: Qtopia for mobile phones
   Qt/E-4.7.1 with the latest updated Qt/Embedded ,graphical interface library, fashionable and dynamic.
   Touch panel and USB mouse could be used at the same time.
   Qtopia2.2.0, Qt/ Extended-4.4.3,Qt/E-4.7.1 for booting selection.
 Graphic Application Testing Program
   Default Qtopia2.2.0 booting with test program supplied by Forlinx. The test program for the following application programs are all open source for your  reference.
   Browser software: Konqueror/E is used for network connection test and internet verifying. Both Chinese and English are available.
   LED test: used for checking whether LED blinks or not.
   Keyboard test: test the 6 function buttons on the single board computer. These buttons could also be used to operate Qtopia2.2.0 as convenient as  keyboard.
   Buzzer Test: test whether PWM can control buzzer
   ADC Test: interface value changes with rotating the ADC key.
   3G dial-up software: support WCDMA ,CDMA2000 ,TD-SCDMA  3 standard 3G network that could be used directly browse webs after dialing-up.
   WiFi: WAP connection is available for USB WIFI and SDIO WIFI which distribute IP address, gateway and DNS via DHCP. As connection is done, Konqueror/E could be used for surfing the internet.
   Picture viewer
   Media player
   Calendar, RTC, calculator, IE browser
   File management
   Terminal
   Games
   Touch panel calibration program
   Plug-in manager
Qt Porting Instruction
  We exclusively offer “Qt Porting Instruction” . It introduces Qtopia2.2.0, Qt/E-Extended-4.4.3, Qt/E-4.7.1 porting procedures in details, which is on the freshmen’s side to teach how to develop the classical HelloWorld.exe by Nokia’s latest updated QtCreator2.0.1 for users’ reference.
