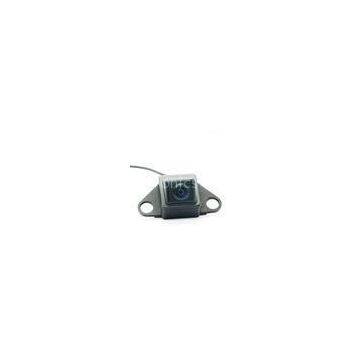

110mA HD IP 67 Toyota Vehicle CCD Rear View Camera , Parking Rearview Car Camera

Shenzhen Haotianjun Electronics Technology Co,.Ltd

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

HTJ

Place of Origin:

China

Model Number:

Toyota 2009 Camry

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Brand Name HTJ

Place of Origin China

Model Number Toyota 2009 Camry

Delivery Time:3-5 Working Days
Certification:CE, FCC

110mA HD IP 67 Toyota Vehicle CCD Rear View Camera , parking rearview car camera

110mA HD Waterproof Toyota Backup Camera With Auto White Balance

Quick Detail:

Material : Plastic

Model Number : Toyota 2009 Crown

Type: Toyota Backup Camera

TV System : PAL / NTSC

Sensor : PC7070 / 3030 / 3089

Place of Origin: Shenzhen

Brand : HTJ

Working Current : 110 mA

Voltage : DC 12V

Lens : 170 deg.

Description

Signal to Noise Ratio (S / N Ratio)	>48dB ( Better Than 48dB)
Sync. System	Internal
Gamma Consumption	0.45
Anti-vibration (Weight )	10 g
White Balance/BLC/AGC	Auto
Waterproof	IP 67
Effective pixels	648 x 488 pixels
Anti-vibration	10 g
Power supply (Voltage )	Max 150 mA
Operating Temperature	-20°C~+70°C, RH 95% MAX
Storage Temperature	-30°C~+80°C, RH 95% MAX.
Certification	CE / FCC
Field Angle	Level : 110° , Vertical :95° , Cater-cornor : 130°
Connection	RCA / 4 PIN DIN
Lens angle	170°
Image Features	Level

Applications

Help Parking and Reversing

Model Number :Toyota 2009 Camry

Connect to the display of car or add a rear view mirror display

Specifications :

Image Sensor	1/3 1/4“ CMOS (PC7366)
Effective Pixels	648 x 488 pixels
Shutter Speed	1/50(PAL)/1/60(NTSC)～1/100,000 Sec.
Resolution	480 TVL / 720 TV Lines
Chipset	1030 / 3030 / 1089 /
Video Output	1.0vp-p, 75 Ohm
Scanning System	525lines,60 fields/sec
S/N Ratio	Better than 48 dB ( > 48DB)
Minimum Illumination	0.3 Lux ~ 0.6Lux
Power Supply	110 mA
Sensing Area	3.6mm * 2.7mm
Lens	f=2.5mm F=2.0
Features	Water Resistance , Shockproof , Dustproof , HD , LEDS, CCD Sensor, Night Vision
White Balance	Auto(2500K~9500K)
