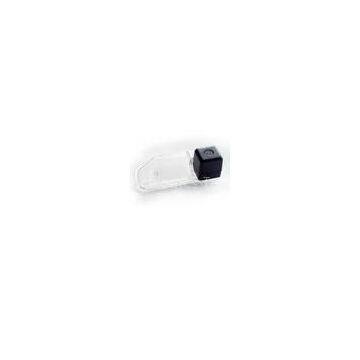

1/3 CMOS 30fps Toyota Backup Camera , IP67 Car Rear View Camera

Sensor

 PC 3089

 PC7070

 Effective Pixels

 962 * 504

 648 * 488

 Image Sensor

 1/3“ CMOS

 1/4“ CMOS

 Image Resolution

 800TVL

 480TVL

 Minimum Illumination

 0.5Lux

 0.6 Lux

 TV System

 PAL / NTSC

 Electronic Shutter

 1/50(PAL)～1/100,000 Seconds

 1/60(NTSC)～1/100,000 Seconds

 Scanning System

525lines , 60 fields/Sec

 Frame Frequency

 30fps

 Sensing Area

3.6 mm * 2.7 mm

 Working Voltage Range

 12V~26VDC

 Power Supply

 DC 12 V

 Working Current

 110mA

 Vision Signal

 1.0Vp-p at 75ohm

 Protection Grade

 IP67 (Camera)

 Field Angle

115/ level , 95°/ Vertical , 135°/ Cater corner

 Operating Temperature

  -20°C~70°C,  ( RH 95% MAX )

 Storage Temperature

  -30°C~85°C, ( RH 95% MAX. )

 Sync. System

 Internal

 Image Features

Horizontal

 Exposure Control

 Auto

 Gain Control

 Auto

Model No.

Lexus ES-350

Power supply

DC 12V

Working Current

150 mA

Lens

f=2.5mm  F=2.0

Lens angle

170 degree

Connection

RCA / 4 PIN DIN

Gamma Consumption

 0.45

Anti-vibration

10 g

Effective Pixels
