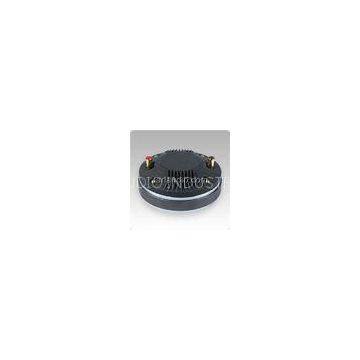

100 W RMS 8Ohm Compression Driver Tweeter , 1.8T Flux Density
8ohm CY-7201S Compression Driver Tweeter Driver
Description:
1)Power Capacity:100W RMS
2)Sensitivity:114dB
3)Titanium,Tweeter,Audio,Speaker Driver
4)Impedance:8Ohm,
5)500Hz-18KHz
Specifications:
Throat Diameter : 2 in (50mm)
Mounting Type : Bolt-on
Nominal Impedance : 8 Ohm
Power Capacity : 100Watts RMS
Sensitivity(1W/1M) : 114dB
Frequency Range : 500Hz-18KHz
Diaphragm Material : Titanium
Voice Coil Diameter : 2.84in(72.2mm)
Voice Coil Material : Round&Ribbon Aluminium Wire
Flux Density : 1.8T
Magnet : Strontium Ferrite
Overall Diameter×Depth : 170mm (6.7in)×72.5mm (2.85in)
Net Weight : 5.36Kg
Overview:
High quality compression driver offering excellent efficiency and low distortion. It is recommended for use in studio monitors, stage boxes, and sound reinforcement in small to medium rooms.
Highlights:
Titanium diaphragm for durability and extended HF response
Optimized phase plug eliminate phase cancellation problems
High-temperature voice coil materials ensure reliability
Smooth, extended frequency response
Easy diaphragm replacement
After-sale service:
1. Prompt delivery
2. Track the order until you get the goods
3. Choose the cheapest and safest shipping company
4. We will replace the broken parts with new parts in your next order
