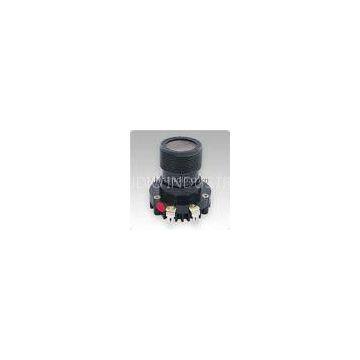

20W RMS 8ohm Compression Driver , PA Speaker Tweeter Driver
8ohm CY-2514S Compression Driver
Description:
1)Power :20W RMS
2)Sensitivity:106dB
3)Professional Pa Speaker Tweeter Driver
4)Impedance:8Ohm,0.12 KG
5)1.5KHz-18KHz Freq
Specifications:
Throat Diameter : 1 in (25mm)
Mounting Type : Screw on 1 3/8″
Nominal Impedance : 8 Ohm
Power Capacity : 20Watts RMS
Sensitivity(1W/1M) : 106dB
Frequency Range : 1.5KHz-18KHz
Diaphragm Material : Titanium or Phenolic
Voice Coil Diameter : 1 in(25.4mm)
Voice Coil Material : Round Copper or Aluminium Wire
Flux Density : 1.35T
Magnet : Neodymium N-38
Overall Diameter×Depth : 50mm (1.97in)×56.5mm (2.22in)
Net Weight : 0.12Kg
Overview:
High quality compression driver offering excellent efficiency and low distortion. It is recommended for use in studio monitors, stage boxes, and sound reinforcement in small to medium rooms.
Highlights:
Titanium diaphragm for durability and extended HF response
Optimized phase plug eliminate phase cancellation problems
High-temperature voice coil materials ensure reliability
Smooth, extended frequency response
Easy diaphragm replacement
After-sale service:
1. Prompt delivery
2. Track the order until you get the goods
3. Choose the cheapest and safest shipping company
4. We will replace the broken parts with new parts in your next order
