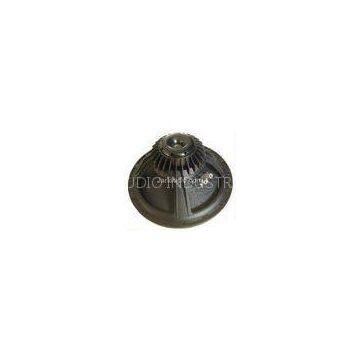

393mm 8 Ohm Loudspeaker Woofer 300W, Copper / Aluminium Coil

Ningbo Jia Er(jarl) Audio Industry & Trade Co.,
393mm 8 Ohm Loudspeaker Woofer 300W, Copper / Aluminium Coil thumbnail-1
393mm 8 Ohm Loudspeaker Woofer 300W, Copper / Aluminium Coil photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Jarl Audio
Place of Origin:
China
Model Number:
PK Series
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Jarl Audio
Place of Origin China
Model Number PK Series
Delivery Time:25-30days
Certification:ROHS CE

393mm 8 ohm Loudspeaker Woofer 300W, Copper / Aluminium Coil

Big power audio woofer PK Series Loudspeakers

Description:

1.Nominal Impedance:8 ohm
2.Former Material:Glass Fiber
3.Coil Material:Copper/Aluminium
4.Power Handling:300W
5.OEM is ok


Specifications:

Nominal Diameter                                     393mm(15in)

Nominal Impedance                                             8 ohm

Power Handling

Nominal (30-500Hz)(1                                          300W

Continuous Program(2                                        600W

Sensitivity(2.83V/1m)(3                                     96.5dB

Frequency Range                                         37-3800Hz

Voice Coil Diameter                                          75.5mm

Coil Material                                      Copper/Aluminium

Former Material                                           Glass Fiber

Gsp depth                                                           10mm

Voice Coil Winding width                                   17.5mm

Magnet Type                                               Neodymium

Thiele & Small Parameters

FS                                                                       38HZ

Re                                                                   5.4 ohm

Qes                                                                       0.43

Qms                                                                      5.10

Qts                                                                        0.40

Mms                                                                       52g

Vas                                                                 270 Ltr

Sd                                                                     855cm

Le                                                                    0.46mH

Bl                                                                     17.5Tm

Xmax                                                                  ±4mm

ηo                                                                        2.0%

Mounting and shipping info

Overall Diameter                                              393mm

Overall Depth                                                   155mm

Baffle Cutout Diameter                                     358mm

Bolt Circle Diameter                               373mm(Φ7×8)

Net Weight                                                         3.5Kg

Shipping Weight                                                 4.1Kg

Overview

We set a new standard of value in high-performance loudspeaker drivers. Utilizing a low-distortion motor system with two short-circuit paths and a rigid aluminum cone, the Reference Series can outperform drivers that cost several times the price.

Highlights

Long-excursion motor and suspension for strong bass performance

Subtle yet high-tech look makes a bold cosmetic statement

Ultra-low stray magnetic field allows extremely close proximity to CRT\'s

After-sale service:

1. Prompt delivery

2. Track the order until you get the goods

3. Choose the cheapest and safest shipping company

4. We will replace the broken parts with new parts in your next order
