Home > Products > New product > LM2-100X3000 Dual-Head Corner Combining Machine

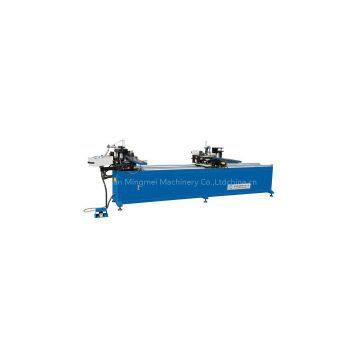

LM2-100X3000 Dual-Head Corner Combining Machine
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Place of Origin | China |
Product Description
This is the equipment specially used for the 90 degree corner joint of structural aluminum doors and windows with corner braces.
The special power transmission reduces the joint seam.
The movable heads applies high precision guide rail pair with high motion precision and high operating stability.
The dual heads crimps synchronically to complete the machining of two window corners at one time.
The crimping tool can be adjusted back and forth or up and down, applicable to various profiles.
Parameters:
| Input Power | 2.2kw |
| Power Supply | 380V/50Hz |
| Working Pressure | 0.6~0.8MPa |
| Rated Pressure | 15MPa |
| Oil Tank Capacity | 25L |
| Applicable Profile Width | 90mm |
| Max. Distance between Both Heads | 3900*1000*1300mm |
| Dimensions | 4700*2200*2600 |
| Weight | 1500Kg or so |
