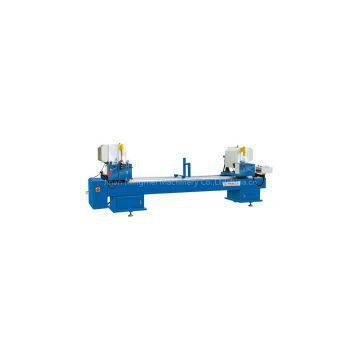

LJZ2S-450X3300 Dual-Head CNC Mitre Saw
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Place of Origin | China |
Product Description
It is used for cutting aluminum and plastic profiles at the angle of -45°, 90° or 45°.
The lathe carriage is moved by a precision linear bearing pair to guarantee the repetitive positioning of high precision.
The movable heads are pulled by a stepper motor, and controlled by a CNC system with LED touch screen. This machine can be used for both cutting or sawing corner braces.
It is of solid structure, high rigidity, safety and reliability, high machining precision, high working efficiency, simple and convenient operation.
Parameters:
| Input Power | 4.5kw |
| Power Supply | 380V/50Hz |
| Working Pressure | 0.5-0.8MPa |
| Rpm | 2800 |
| Size of Saw Blade | 450*30 |
| Cutting Angle | -45°-90°-45° |
| Cutting Range | 600-3300mm |
| Cutting Width * Height | 120*160 |
| Dimension | 4600*1300*1500 |
| Weight | 1100kg or so |
