Home > Products > Residual Current Circuit Breaker > Electrical Miniature Residual Current Circuit Breaker with CE Certification

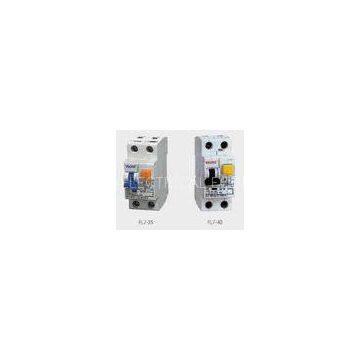

Electrical Miniature Residual Current Circuit Breaker with CE Certification
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
- Titanium Bipolar Plate for Battery Fuel Cells
- 0.5Microns Sintered Porous Ti Plate for PEM Electrode
- Sintered Nickel Fiber Paper Nickel Felt For GDL
- Ultra-thin 0.6mm Titanium Porous Transfer Layer for Hydrogen
- Nickel Mesh Anode in AEM Electrolyzer
- Pure Titanium Electrode Porous Fiber Felts For PEM Fuel Cell
Product Details
Brand Name: | VECAS | Place of Origin: | China | Model Number: | HCL7-63 |
Product Description
Certification:CE
Electrical Miniature Residual Current Circuit Breaker with CE Certification
Specification and Feature
High-quality residual current device/miniature circuit breaker combination, line voltage-independent Contact position indicator red-green Colour code for rated tripping currents Comprehensive range of accessories suitable for subsequent installation Wide variety of rated tripping currents Rated currents up to 40A Tripping characteristics C Rated breaking capacity 10KATechnical Data
In/i△n/(A) |
Type Designation |
Article No |
Units per package |
2/0.03 |
HCL7-2/1N/C/003 |
382153 |
1/60 |
4/0.03 |
HCL7-4/1N/C/003 |
382154 |
1/60 |
6/0.03 |
HCL7-6/1N/C/003 |
382155 |
1/60 |
10/0.03 |
HCL7-10/1N/C/003 |
382156 |
1/60 |
15/0.03 |
HCL7-15/1N/C/003 |
382157 |
1/60 |
16/0.03 |
HCL7-16/1N/C/003 |
382158 |
1/60 |
20/0.03 |
HCL7-20/1N/C/003 |
382159 |
1/60 |
25/0.03 |
HCL7-25/1N/C/003 |
382160 |
1/60 |
32/0.03 |
HCL7-32/1N/C/003 |
382161 |
1/60 |
40/0.03 |
HCL7-40/1N/C/003 |
382162 |
1/60 |
2/0.1 |
HCL7-2/1N/C/01 |
382163 |
1/60 |
4/0.1 |
HCL7-4/1N/C/01 |
382164 |
1/60 |
6/0.1 |
HCL7-6/1N/C/01 |
382165 |
1/60 |
10/0.1 |
HCL7-10/1N/C/01 |
382166 |
1/60 |
15/0.1 |
HCL7-15/1N/C/01 |
382167 |
1/60 |
16/0.1 |
HCL7-16/1N/C/01 |
382168 |
1/60 |
20/0.1 |
HCL7-20/1N/C/01 |
382169 |
1/60 |
25/0.1 |
HCL7-25/1N/C/01 |
382170 |
1/60 |
32/0.1 |
HCL7-32/1N/C/01 |
382171 |
1/60 |
40/0.1 |
HCL7-40/1N/C/01 |
382172 |
1/60 |
