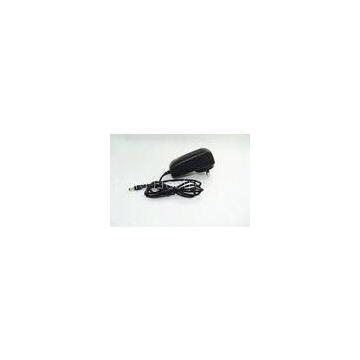

8V 3A 24W Output Mini Size AC Power Adapters for AU Socket with SAA Certificate

FOB Price

Negotiable / Unit

1 Unit(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	WT		Place of Origin	China
Model Number	WT0803000

Product Description

Delivery Time:15 Days
Certification:UL/CUL, PSE, TUV/GS, CE, CCC, SAA and ROHS

8V 3A 24W Output Mini Size AC Power Adapters for AU Socket with SAA Certificate

Quick Details:

Input voltage: 100 to 240V AC, 50/60Hz Output voltage: 8V 3A Power: 24W Dimension (L x W x H): 93.5*47*33mm Socket type: AU plug, 2 pins Application: ADSL Modem, Digital Picture Frame, Video Telephone, etc

Description:

1. Surface cosiness, small size and convenient carrying

2. Low cost, high reliability and all cases are covered by ultrasonic

3. Built-in OVP, OCP and SCP

4. Universal input voltage:

a. I/P voltage 100-240VAC; 50/60Hz

b. Turn on delay time≤3s

c. Inrush current≤30A/24V AC

5. O/P:

a. High accuracy and low noice

b. Hold up time ≥20mS

6. Operation model: CV

7. Environment:

a. Operation temperature: 0°C-40°C;5%-90%RH

b. Storage temperature: -20°C-85°C;5%-95%RH

8. Cooling: Natural cooling

9. Energy standard: CEC/ERP

10. Safety standard: IEC/EN60950

11. Insulation: hi-pot, 3,000V AC 60S 10mA

12. Leakage current: 0.25mA (maximum)

13. MTBF: MIL-HDBK-217F, full load, 25, more than 50,000 hours

14. RoHS compliant

Warranty:	1 year
Certification:	UL/CUL, PSE, TUV/GS, CE, CCC, SAA and ROHS
Usage:	ADSL Modem, Digital Picture Frame, Video Telephone, etc
Packaging:	a. PE bag+ white box 84pcs/carton b. PE bag without white box 100pcs/carton
Place of Origin:	China(Mainland)
Brand Name:	WT
Model Numeber:	WT0803000
MOQ:	500 pcs
Delivery Time:	15 Days
Payment Terms:	T/T(30% in advance, 70% the balance must be paid before the delivery)
Supply Ability:	8000 PCS/Day

Our Advantages:

Professional&experienced engineers Good quality Competitive price Intime service Free samples available About 10 years experiences OEM/ODM services are highly welcome Flexible to meet dynamic requirements High technology Short Lead time AC input power suitable for the world Soft-start current can reduce the AC input impact efficiency With short-circuit and overload protection Compact size ,light weight 100%full-load burning test Installed with EMI filter ,minimum wave Fashionable design Small size Low-ripple and noise High-efficiency

Some Using Details:

Do not install power supply in locations with high humidity, dust or strong direct sunlight. Connect power supply to the supplied unit. Power supply must be connected to a working electrical AC line with a voltage of 100-240V. Power supply can only be installed indoors. The power supply should be installed in a location with good airflow.
