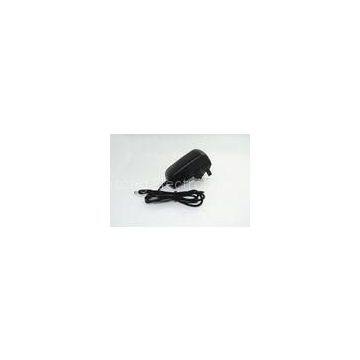

24W DC Output AC Power Adapters , IEC / EN60950 UK Plug Video Telephone Adaptor

Shenzhen Wentong Electronics Co., LTD.
24W DC Output AC Power Adapters , IEC / EN60950 UK Plug Video Telephone Adaptor thumbnail-1
24W DC Output AC Power Adapters , IEC / EN60950 UK Plug Video Telephone Adaptor photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
WT
Place of Origin:
China
Model Number:
WT2401000
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name WT
Place of Origin China
Model Number WT2401000
Delivery Time:15 Days
Certification:UL/CUL, PSE, TUV/GS, CE, CCC, SAA and ROHS

24W DC Output AC Power Adapters Meet IEC / EN60950 Safety Standard with UK Plug

Quick Details:

​Input voltage: 100 to 240V AC, 50/60Hz Output voltage: 24V 1A Power: 24W Dimension (L x W x H): 93.5*47*33mm Socket type: UK plug, 3 pins Application: ADSL Modem, Digital Picture Frame, Video Telephone, etc

Description:

1. Surface cosiness, small size and convenient carrying

2. Low cost, high reliability and all cases are covered by ultrasonic

3. Built-in OVP, OCP and SCP

4. Universal input voltage:

a. I/P voltage 100-240VAC; 50/60Hz

b. Turn on delay time≤3s

c. Inrush current≤30A/24V AC

5. O/P:

a. High accuracy and low noice

b. Hold up time ≥20mS

6. Operation model: CV

7. Environment:

a. Operation temperature: 0°C-40°C;5%-90%RH

b. Storage temperature: -20°C-85°C;5%-95%RH

8. Cooling: Natural cooling

9. Energy standard: CEC/ERP

10. Safety standard: IEC/EN60950

11. Insulation: hi-pot, 3,000V AC 60S 10mA

12. Leakage current: 0.25mA (maximum)

13. MTBF: MIL-HDBK-217F, full load, 25, more than 50,000 hours

14. RoHS compliant

Warranty:

1 year

Certification:

 UL/CUL, PSE, TUV/GS, CE, CCC, SAA and ROHS

Usage:

ADSL Modem, Digital Picture Frame, Video Telephone, etc

Packaging:

a. PE bag+ white box  84pcs/carton

b. PE bag without white box  100pcs/carton

Place of Origin:

China(Mainland)

Brand Name:

WT

Model Numeber:

WT2401000

MOQ:

500 pcs

Delivery Time:

15 Days

Payment Terms:

T/T(30% in advance, 70% the balance must be paid before the delivery)

Supply Ability:

8000 PCS/Day

Our Advantages:

Professional&experienced engineers Good quality Competitive price Intime service Free samples available  About 10 years experiences OEM/ODM services are highly welcome Flexible to meet dynamic requirements High technology Short Lead time AC input power suitable for the world Soft-start current can reduce the AC input impact efficiency With short-circuit and overload protection Compact size ,light weight 100%full-load burning test Installed with EMI filter ,minimum wave Fashionable design Small size Low-ripple and noise High-efficiency

Some Using Details:

Do not install power supply in locations with high humidity, dust or strong direct sunlight. Connect power supply to the supplied unit. Power supply must be connected to a working electrical AC line with a voltage of 100-240V. Power supply can only be installed indoors. The power supply should be installed in a location with good airflow.
