Horizontal Detachable In Line Water Meter Class B ISO 4064 , Dry Dial

Delivery Time:15-30days after receiving deposit
Certification:ISO9001:2008
Horizontal Detachable In Line Water Meter Class B ISO 4064 , Dry Dial

Quick Detail:

1. Type name: Woltmann removable type

2. Model No.: LXLG-50B

3. Standard :ISO 4064 Class B

4. Material: Cast iron

5. Dry-dial,magnetic type

6. Horizontal installation

Description:

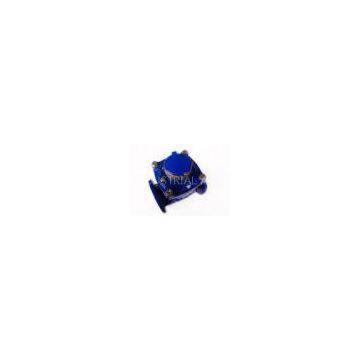

Horizontal Woltmann Detachable Dry-dial Type Cold (Hot) Water Meter LXLG-50B

Product features:

Woltmann detachable type

Dry-dial,magnetic drive

Selected high quality materials for steady and reliable characteristic ,low head loss and enable use a long life span

Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term

Universal use with this range detachable,without removing the meter from the pipeline for a easy maintenance and replacement ,good looking,etc.

Measuring accuracy conform to ISO4064 Class B standard

Installation requirements:

Meter should be installed in horizontal position with the register face upwards Pipe line must be flushed before installation The meter should be constantly full of water during operation

Main Technical data

Meter Size  DN (mm)	Class	Qs Overload Flow	Qp Nominal Flow	Qt Transitional Flow	Qmin Min Flow	Starting Flow	Min Reading	Max Reading
m³/h	L/h	m³
50	B	30	15	3	0.45	150	0.01	9999999
65	B	50	25	5	0.75	170	0.01	9999999
80	B	80	40	8	1.2	280	0.01	9999999
100	B	120	60	12	1.8	400	0.01	9999999
125	B	200	100	20	3	800	0.01	9999999
150	B	300	150	30	4.5	1200	0.01
