Product Details

Brand Name	Yongzhou		Place of Origin	China
Model Number	LXSC-15D~LXSC-20D

Product Description

Delivery Time:15-30days after receiving deposit
Certification:ISO9001:2008

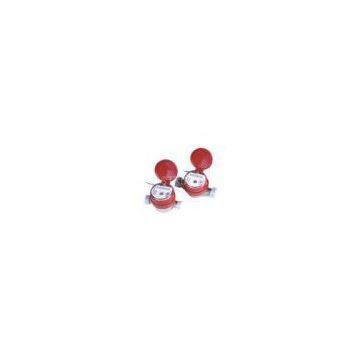

Vane Wheel Water Meter with High Accuracy , Dry Dial Water Velocity Meter

Quick Detail:

1. Type name: Single-jet brass water meter

2. Model No.: LXSC-15D ~LXSC-20D

3. Standard :ISO 4064 Class B

4. Material: Brass

5. Feature : Dry type, anti-magnetic

6. Remote reading transmission system could be installed

Description:

Single jet Hot with Remote Reading DN15mm~DN20mm

Product features:

Single-jet ,Rotary vane wheel type

Dry-dial, Magnetic drive ,Resistance to exterior magnet interference

The register can be turned discretion and easy reading

Small in size, light weight and small at starting flow rate

Remote reading transmission system and the pulse constant :10L/Pulse ,100L/Pluse ,1000L/Pulse for option

Installation requirements:

Meter should be installed in horizontal position with the register face upwards Pipe line must be flushed before installation The meter should be constantly full of water during operation

INDICATING ERROR

At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary
At high zone is ±2% from transitional flow rate (qt) to overload flow rate (qs) (Hot water meter ±3%)

Main Technical data

Meter Size DN (mm)	Class	Qs Overload Flow	Qp Nominal Flow	Qt Transitional Flow	Qmin Min Flow	Min Reading	Max Reading
m³/h	L/h	m³
15	A	3	1.5	150	60	0.0001	99999
B	120	30
20	A	5	1.8	250	100	0.0001	99999
B	200	50
25	A	7	3.5	350	140	0.0001	99999
B	280	70

Working Condition:

Water temperature:0℃≤t≤50℃ (For cold water meter)

Water pressure: ≤10bar (16bar on request)

Specifications:

Type	size	L	B	H	Connection thread	Weight
LSXC-15D	15	110	73
