Industrial Removable Bulk Water Meter LXLG-100B Magnetic For Cold Water

FOB Price

Negotiable / Set

1 Set(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Yongzhou		Place of Origin	China
Model Number	LXLG-100B

Product Description

Delivery Time:15-30days after receiving deposit
Certification:ISO9001:2008

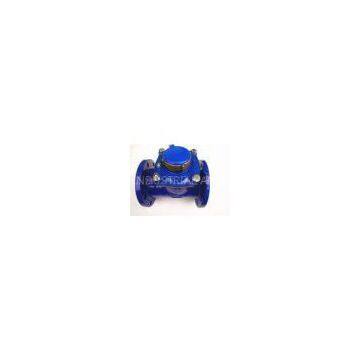

Industrial Removable Bulk Water Meter LXLG-100B Magnetic For Cold Water

Quick Detail:

1. Type name: Woltmann removable type

2. Model No.: LXLG-100B

3. Standard :ISO 4064 Class B

4. Material: Cast iron

5. Dry-dial,magnetic type

6. Horizontal installation

Description:

Industrial Removable Woltmann Dry Type Water Meter LXLG-100B

Product features:

Removable elements, magnetic drive, dry-dial

Dry-dial, frost resistant, clear reading

Steady and reliable performance

Low head loss, structure advanced person

Hot water meter and remote reading transmission system for option

Application:

This range of water meter is used to measure the total quantity of cold (hot) water which consumed in industrial and mining enterprise passing through the pipeline .

Installation requirements:

Meter should be installed in horizontal position with the register face upwards Pipe line must be flushed before installation The meter should be constantly full of water during operation

Maximum permissible error:

In the lower zone from Qmin inclusive up to but excluding Qt is ±5%

In the upper zone from Qt inclusive up to and including Qs is ±2%

Working Condition:

Water temperature:0℃≤t≤50℃ (For cold water meter)

Water pressure: ≤10bar (16bar on request)

Main Technical data

Meter Size DN (mm)	Class	Qs Overload Flow	Qp Nominal Flow	Qt Transitional Flow	Qmin Min Flow	Starting Flow	Min Reading	Max Reading
m³/h	L/h	m³
50	B	30	15	3	0.45	150	0.01	9999999
65	B	50	25	5	0.75	170	0.01	9999999
80	B	80	40	8	1.2	280	0.01	9999999
100	B	120	60	12	1.8	400	0.01	9999999
125	B	200	100	20	3	800	0.01	9999999
150	B
