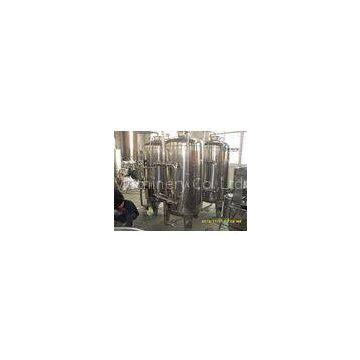

Stainless Steel 5000LPH Water Purifying Machine For Beverage
Quick Detail:
Capacity range: 5 tons per hour Main material: SUS304 Certificate: CE, SGS RO membrane brand: Hydranautics Main pump brand: Nanfang pump Main electric component brand: Mitsubishi Easy operate5 tons per hour SUS304/316 pure water treatment equipment RO water treatment machine
Description:
Ro Water treatment plant:
1, desalt rate ≥99
2, capacity: 5000LPH
3, material: 304 S.S
4, Conductivity≤20
RO Pure water treatment system is for producing drinking water, foods factory, beverage factory, fruit & vegetable factory etc. The machine is integrated into a group; the assembly and transportation are rather convenient.
It\'s simply operation and has long lifespan.
---------------------------------------------------------------------------
Main components of RO water treatment plant:
RO membrane(Hydecanme),
high pressure pump(South.China)
Electricity conduction meter
Over high or over low pressure protection facilities
304 Stainless steel
Suitable for investment for mid-scale enterprises
The standard of supplied water
Electricity conduction rate: Nor more than 10us/cm
----------------------------------------------------------------------
Installation of RO water treatment plant:
Raw water pump+silica sand filter+active carbon filter+softener + micron filter+high pressure pump+RO system.
---------------------------------------------------------------------
Plant process of RO water treatment plant:
1. Raw water pump-- provide the pressure to silica sand filter/active carbon filter
2. Silica sand filter-- get rid of turbidity, suspended matter, organic matter, colloid and so on
3. Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter and so on
4, Softener--reduce the hardness of water
4. Micron filter--prevent any deposition of large Particles, most of the bacteria, and viruses into the RO membrane, The accuracy is 5um, for holding back any large particulates such as large iron, dust, suspended matter, impurity.
5. High pressure pump-- Provide the high pressure to RO membrane (at least 2.0 Mpa).
6. RO system--RO system is the main part of pure water treatment plant. The RO membrane\'s desalt rate can reach as high as 99%, it is capable of removing over 99% of ions, bacteria, particles and 98% of organic.
Application
food and beverage industry electronic industry medicine industry chemical industry petroleum industry water reclamation pre-treatment of RO system and pure water treatment surface water treatment biotechnology industrySpecifications:
|
Name |
RO Pure water treatment equipment |
|
Specification |
Model:RO-5000 Capacity of pure water: 5000l/h General power: 5.75kw Electrical power: AC220V 18A/380 9A 50HZ Ro membranes: 4040 12 items (1 grade) Multi-phases pump: cdl2-180/2.2kw 2 item Beforehand filter:Φ800 x2000x3 2 items SS sediment membranes filter tube: Φ90x1000x3 items Booster pump: chl2-30/0.55kw 1 item Active carbon filter :200kg Out size of main machine (mm): 2700x2410x2200 Quartz sand filter: 200kg |
Competitive Advantage:
Stainless steel plate thickness of filters is 4mm, more durable. Multi-phases pump protected without water Purified water high water level auto stop, low water level auto start Protected when no power, poor power, larger electrical current short circuit, creep age of electricity Easy to backwash. More beautiful appearance. Machine component can be adjustable according to customer’s requirement.
