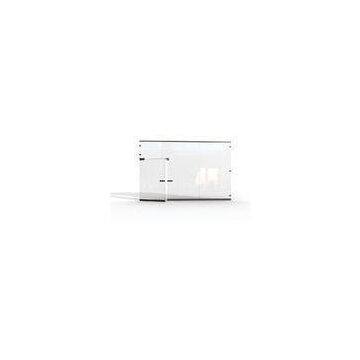

Impact Resistant Safety Tempered Glass Clear For Doors CCC ISO CE

Impact Resistant Safety Tempered Glass Clear For Doors CCC ISO CE

Quick Detail

1.Thermal stability

2.Good flexibility

3.CE standard, BS standard

4.Thickness 4-25mm

5.Min size: 100*300mm  Max size: 2800*6000mm

6.Curtainwall, construction glass

7.Safety glass

High mechanical-resistant strength

Description:

The glass is raised to softening temperature (650°C) and is then cooled suddenly. Toughened glass is also a type of safety glass, five times stronger than normal glass.

1. Features:

Safety: Glass is not easy to be broken when attacked. Broken glass particle is of honeycomb shape with obtuse angles which won’t cause serve hurt to human body.

High Mechanical-resistant strength: Impact-resistant strength of tempered glass is 3-5 times higher than that of float glass of the same thickness.

Thermal stability: Thermal stability of tempered glass is 3 times higher than that of float glass of same thickness. Tempered glass can withstand sudden temperature shift of 220-250 degree while float glass can only withstand shift of 70-100 degree.

Good flexibility: Deflection angle of tempered glass is 3-4 times larger than that of float glass of the same thickness. When there is load on tempered glass, its maximum tensile stress does not locate on the glass surface as float glass, but on the centre point of glass sheet.

2. Application:

Tempered Glass Door is safety glass, extensively applied in the places which has critical request of high mechanical strength and safety, such as glass door, curtain wall, indoor partition, showroom and household appliance, etc.


3. Specification:

Thickness: 4mm-25mm
Max Size: 2800*6000mm
Min Size: 100*300mm

4. Quality:

In accordance with BS6206 British Standard
In accordance with CE Standard
In accordance with AS/NZS Standard
In accordance with GB 9963-1998 Tempered Glass Standard.
In accordance with GB 17981-1999 Chinese Standard Tempered and Heat-Strengthened Glass Used in Curtain Walls.
Pass Chinese Safety Glass Compulsory Certification (CCC).
