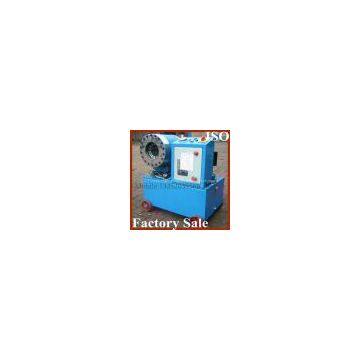

Factory sale hydraulic pipe crimper / hose crimping machine
1.Profile of hose crimper machine :
Crimping hose machine( Also can be called rubber tubes locking machine, rubber tubes pressing machine, rubber tubes crimping machine,high pressure hose crimping machine, tube locking machine, and so on.) is kinds of machines which can be used to lock and press the tubes assembly. It can force contractility through the moulds to press and crimp the metal joints on the matching rubber tubes firmly. Hydraulic hose crimping machine can press and lock lots of kinds of tubes, such as high-low pressure tubes, gas tubes, water tubes, air-condition tubes, corrugated pipes and also with cable joints, so they are widely used on cars, construction machinery, household appliances and welding and cutting equipment industries. Now the market requires much higher quality of the rubber tubes locking machine, to meet the needs we design and produce more than 10 kinds of types of rubber tubes locking machine, and they are all high precision and high efficiency to press and crimp elbow, flange, tubes with varies kinds of sizes, diameter, or layers of steel wires.
2.Advantage of hose crimper machine :
Model DX68 crimping hose machine is mainly used for buckling processing for high pressure rubber pipe assembly in the mechanical engineering. It can also be used for buckling the two-way bends, especially large bends and irregular shape bends.
This machine features small and portable appearance, big force, low noise and easy to operate. The buckling amount can be precise adjusted through a scale. It makes the mould base division to be more even through the double inclined plane eight-flap mould seat equipped with a high accuracy guiding device.
3.Why choose us?
petitive price
We have our own factory ,therefore we possess plentiful sources and the lowest price in industrial field.
2.Abundant experience We have exported for more than for 10 years,,our superior quality and best after-sale service are highly spoken of home and abroad.
3.Principal market:
Good reputation,,service and speedy feedback from our clients,good products and timely shipping make us keeping friendly and long-term business relations with our clients who come from the East Asia,North & South Africa etc.
4.Quality warranty
100% environmental protection material,easy to deal with all environmental requirements
100% quality warranty and maintenance
100% standard export packing
5.Our certification
CE Certification
ISO Certification
Registration Certificate of Consignors and Consignees of Imports and Exports
Certificate of approval
Business licence
Organization Code Certificate
4.The technical parament of hose crimper machine :
| crimping range | 6mm-51mm |
| Max. buckling force | 449T |
| Scale accuracy | 0.02mm |
| Rated pressure | 31.5Mpa |
| Oil pump displacement | 5ml/rad (380V) 2.5ml/rad (220V) |
| Overall dimensions |
670(L) *490(W)*780(H)mm |
| Dies size | 16 19 23 26 31 36 41 47 55 63(MM) |
| weight | 200Kg |
