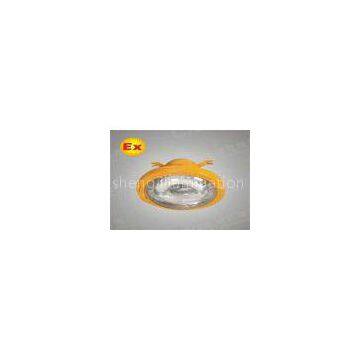

CE Explosion-Proof Light , Aluminum Alloy Electrode-Less Lamp 6500lm 80w for industrial workplace
Quick Detail:
| Place of Origin | China (Mainland) Brand |
| Name of model | CBFC8182 |
| Light Source | Electrode-less lamp |
| Rated Power | 80W |
| Material | alluminum alloy |
| Payment Terms | L/C, T/T |
| Certificate | CE, ISO9001 |
Applications:
Suitable for flammable and explosive place security work, for a variety of indoor and outdoor workplaces. China\'s coal industry, China petroleum, Sinopec, electricity, metallurgy, railway, steel, shipbuilding, military, aerospace, public security fire control, chemical industry and the use of large enterprise fixed lighting needs.
Features:
Explosion-proof function:Highest explosion-proof grade ,can work safely in flammable and explosive environment.
High-light efficiency and energy-saving:Adopt new high frequency energy-saving light source.Can transient time star-up and restarting without preheating time.The average service life over to 80000 hours.
No lamp filament,particularly strong anti-seismic capability,high reliability,maintenance,and can achieve little neglected and reduce the cost of maintenance and management.
Installation:Adopt ceiling type,chain type,light pole type and other manners of installation
Distribution Curve
Product data:
|
NO. |
Light Source |
Rated Power(W) |
Luminouse flux(Lm) |
|
CBFC8182 |
Electrode-less Lamp |
80W |
6500 |
|
Rated voltage: |
220VAC 50HZ |
||
|
Service Life: |
800000h |
||
|
Explosion-proof mark: |
Exde II CT6 |
||
|
Enclosure: |
IP65 |
||
|
Insulation Class: |
I |
||
|
Protection Category: |
WF2 |
||
|
Inlet Thread: |
G3/4 |
||
|
Drop Cable: |
Ø8-Ø14mm |
||
|
Distance Ratio: |
3 |
||
|
Dimensions: |
Ø370*280mm(outline*hight) |
||
|
Total Weight: |
7.5kg |
Product Dimensions and Installation
Quality Assurance
This product is in strict accordance with the ISO9001:2008 international quality management system
standards for quality control,ensure product quality is higher than national standard, fully meet the
design requirements,products 7years warranty (light source is guaranteed for one year),with 7
years from the date of purchase,any fault occurs under normal operation by the company
responsible for free maintain.
