Certification:CE

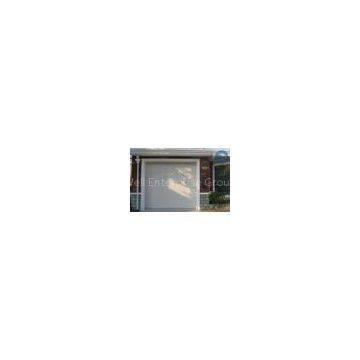

Rectangle Sectional Overhead Garage Door Wood Grain Energy Saving
Quick Detail:
1. Galvanized steel garage door with rectangle woodgrain design
2. Energy saving & thermal insulation
3. With PU foam inside, superior R-value
4. Steel-foaming-Steel, sandwich construction
5. Rust-resistant and color retention
6. Hardware system of EU safety standard
7. Many trend colors offered at favorable prices
8. Reliable performance & years of service
Description:
Material: galvanized steel with Polyurethane insulation Steel thickness: 0.35mm, 0.45mm ( white color only) Panel thickness:40 mm Foaming material: polyurethane Density of foam: 43-45kg/m3 Panel type: Finger protection panel & non-finger protection panel Construction: sandwich contraction Panel width: 440-550mm Max panel length: 12m Weight: 8.5kg/m2 Surface finishes: wood grain, orange peel, flush Panel design: rectangle woodgrain design Standard package: carton box with film for 4 or 5 pieces of panel, usually as full set of garage door panel Normal color: Off white RAL9016Normal Solid colors: Brown RAL8014, Anthracite grey RAL7016, Silver RAL9006, Light beige RAL1019, Ebony RAL9004, Red RAL3000, Blue RAL5015;
Timber color: Mahogany, Gold oak, Dark oak, Black walnut
Single track and double track:Single track only: 1 pair vertical track, 1 pair horizontal track, needs min headroom 350mm
Double track only: 1 pair vertical track, 1 pair horizontal track, 1 pair LHR horizontal track, needs min headroom 150mm
Full set of hardware: Torsion spring, Hinges, Cable drum with cable, Central bracket with bearing, 1\'\' tube shaft, Mounting brackets and other accessories for a complete set Emergency lock for manual operation when power off Residential garage door opener: 800N, 1000N, 1200N, 1500NApplications:
The panel can be inserted the windows to allow daylight to enter your garage, provide it with further uses, e.g. as a workshop or hobby room.
A sectional door leaf glides vertically upwards under the garage ceiling. This provides you with more space than with a convenient up-and-over door. Please kindly see attached drawing of garage door.
Specifications:
|
1 |
Material |
Galvanized steel with PU foaming inside |
|
2 |
Material Construction |
Steel-foam-steel, sandwich panel |
|
3 |
Thickness |
Section thickness 40mm; |
|
4 |
Section Style |
Non-finger protection (SN40); |
|
5 |
Section Size Range |
440mm-550mm in height |
|
6 |
Section Surface Finish |
Wood grain, orange peel, flush |
|
7 |
Front-side design |
Wood grain, with Rectangle |
|
8 |
Backside design |
Wood grain, with Stripes design |
|
9 |
Accessories |
Single Track with min headroom for 350mm; |
|
10 |
Door Openers |
AC220V or 110V; DC Motor; 800/1000/1200/1500N |
|
11 |
Opening Way |
Electrical control and Manual operation |
|
12 |
Color |
White (RAL9016), other colors can be customized |
Competitive Advantage:
1. Low MOQ: One set is available
