Certification:CE/RoHS/C-tick/SAA

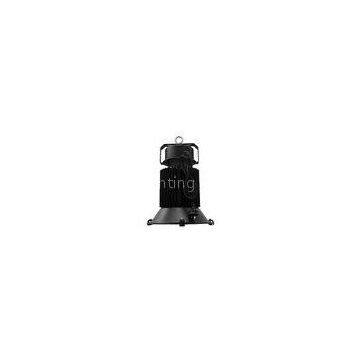

200W / 300W / 400W High power high bay led lighting , PCB 5000K Cool White LED light
Quick Detail:
Model Number: FLA-SH200W-V11 Item Type: LED High Bay Lights LED Light Source: 192pcs SMD 3030 Private mold Micro-groove composite phase (MGCP) cooler +Aluminum heating sink tube+Plane tempered glass+ private high-strength aluminum reflector Only about 50% weight of normal aluminum heating design Power: 200W±5% Input Voltage: 100~240V AC Lamp Luminous Efficiency: >100 lm/w CRI (Ra>): 80% Color Temperature(CCT): 2700K+5000K Working Temperature(℃): -20℃~40℃ Working Lifetime(Hour): 40000 Certification: CE, RoHS, FCC, C-Tick, SAA, CB Warranty: 5years IP Rating: IP54Description:
Product: 200W LED SMD High Bay Lights (Tempered Glass Cover) Model Number: FLA-SH200W-V11 Lamp Body Material: high quality Aluminum Die Casting + sealed liquid+ tempered glass, the light transmittance is about 93% Light Source: high brightness 192pcs SMD 3030 Input Voltage: 100~240V AC / 50~60 Hz Power: 200W±5% Lamp Luminous Flux(lm): 20,000Lm±10% Lamp Luminous Efficiency: >100lm/W CRI (Ra>): >80% Color Temperature: Warm White (2700K), Natural White 4000K), Cool White(5000K) Beam Angle: >120° Working Temperature: -20℃~40℃ Storage Temp. : -40℃~65℃ Lifespan @25℃: 40,000hrs IP Rating: IP54 Certification: CE, RoHS, FCC, C-Tick, SAA, CB Warranty: 5 years N.W.: 7390gApplications:
Widely used in the lighting of government project, business area, airport, metro station, flyover, signboard, Gymnasium, landmark and so on.
Competitive Advantage:
1) MGCP (Micro-groove composite phase) special liquid cooling technology Japan HITACHI Thermal Conductive PCB, does perfect heat sink for LED chip.
2) Integrated package design, Strong Reflector can be delivered completely.
3) Very simple installation, just need to connect cable to 220V AC power! H05RN-F rubber cable!
4) Rubycon Capacitor, TDK/Yageo MLCC, Yageo Resistance, UTC/Infineon (Germany brand) MOS, Dow Corning glue…, five years warranty!
Special Material:
1. Private mold Micro-groove composite phase (MGCP) cooler +Aluminum heating sink tube
2. Private mold tempered glass cover +private high-strength aluminum reflector
3. Only about 50% weight of normal aluminum heating design
4. Japan DENKA HITT PLATE or HITACHI Thermal Conductive PCB
5. Electronic materials
1) Electrolytic capacitor- Rubycon (Top Japanese Brand)
2) MLCC- TDK (Taiwan Brand),Yageo (Taiwan Brand)
3) Electric resistance-Yageo (Taiwan Brand)
4) LED- Epistar chip (Taiwan Brand)
5) MOS-UTC (Taiwan Brand)/Infineon (Germany Brand)
Driver passes CB, GS, TUV, C-Tick, SAA, CE certification
Protection:
1) Output over voltage protection, it can be normal lighting 80~265V AC. Or will be flicker or no lighting. But no damage if >265V AC.
2) Module type power supply design. One module is for 50W LED lamp! For example 200W asks 4 modules, if one module is defective, the lamp has 75% brightness!
3) Output short-circuits protection, return to operating condition within 6 seconds.
High bay light, LED high bay light; Tempered glass LED high bay, Liquid Cooling LED high bay
Specification:
|
Rated Voltage (VAC/Hz) |
100~240VAC / 50~60 Hz |
|
Power Factor (PF) |
>0.95 |
|
Beam Angle (D40) |
120° |
|
Lifespan (hrs) @25℃ |
40,000hrs * |
|
Ambient Temp. (℃) |
-20℃~40℃ |
|
Storage Temp. (℃) |
-40℃~65℃ |
|
Key Material |
MGCP tech aluminum +transparent Tempered Glass |
|
CCT(K) |
2700K*/4000K*/5000K* |
|
ERP NO. |
Item (no) |
Wattage (W) |
CCT |
