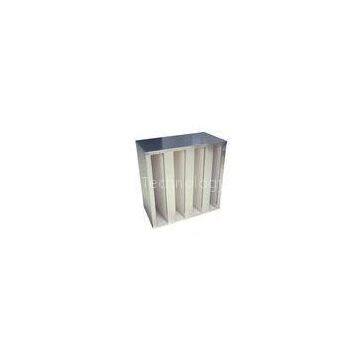

F5 / F6 / F7 V Bank Filters Air Conditioning Filters 400pa - 600pa

F5 / F6 / F7 V Bank Filters Air Conditioning Filters 400pa - 600pa


Quickly detail

Media:glass firbre media  or polypropylene

Frame: Aluminum /Galvanized frame

Filter efficiency: F5,F6.F7,F8,F9
Filter size: 592x592x292
Pocket : 2-6packs
Resistance:<30-50pa


Performance:

High purificati,high rank, big media area , low resistance, big air volume.easy install and low operated cost .

Large air Flow,Large filtering area,Long service life, Depth only 290mm.

Applications area:

secondary v bank filter use for terminal filtration in air conditional system and big air volume clean equipment

Characteristics:

1: The secondary v-bank  filter is the medium in air conditional system that use for filter the particles more than 0.5um. Dedicated design the big air volume at low resistance.

2: High dust holding capacity: mini-pleats type , The filter media adopt the ultra-thin glass fiber , the hot-melt glue spacing each pleats in regular so that achieve high dust volume , the media area can be use in completely, this insure the high dust holding capacity .

3: High air volume: compare with other type filter, it loss more less media area at same air flow. This not only reduce the operate cost but also the time and space.

4:secondary v bank air filter with metal frame, we can make it with flange or without it for your choose.

5: Laser to scan the each air filter one by one.

6: The secondary  V-bank air filter efficiency range: F5.F5.F7.F8.F9 .

 65%-95%@0.5um (EN799).

7: Each air filter with test report accompany If client request.
