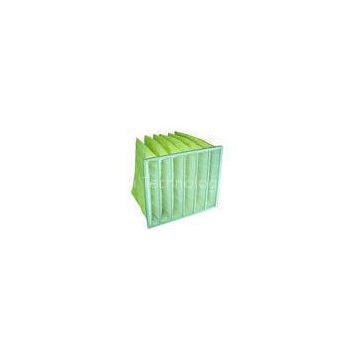

F8 / F9 Mini Pleat Medium Pocket Air Filter With Big Air Volume

FOB Price

Negotiable / Set

1 Set(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	K-LING		Place of Origin	China
Model Number	KEL-BF

Product Description

Delivery Time:8 WORKING DAYS
Certification:EN799

Secondary Pocket Air Filter With Medium Synthetics Fibre

Quickly detail

Media: Non-woven Media
Frame: Aluminum /Plastic
Filter efficiency: F5,F6.F7,F8,F9
Filter size: 592x592x292
Pocket : 4-10 pcs
Resistance:<30-50pa

Performance: Adopts reusable times Responding to low resistance in big air volume,collect 1-5um particle,igh dust loading capacity;washable .

Characteristics:

1) Application: It is applied to some equipments and systems like oven which the clean air is required

2) Medium efficiency anti-static pocket filter

3) Type: Pocket filter

4) Frame: Aluminum alloy or stainless steel

5) Media: Synthetic fiber

6) En779 class : F5,F6,F7,F8,F9

7) Temp. Resistance : 100oC

8) Humidity: 100%

9) Speciality:

Galvanized iron or aluminum alloy frame

Between each pocket has a metal stick to make frame more firm, and the separation material of

each pocket can avoid the filter over expanded under the pressure.

Ultrasonic sealing make the filter more strong and not easy to broke

Adopt fine synthetic fiber instead of some fiberglass material

Material has antistatic fiber, large dust holding capacity and long working life.

10) Pocket mesh efficiency has five different type for choice: 35%, 45%, 65%, 85%, and 95%

Dimension and parameter:

Model	Dimensions (mm)	Rated Airflow m3/h	Initial Resistance	Efficiency	Model of filter media	Pockets
KEL-PF1	495x295x500	1000	50-65pa	F5-F9	synthetic Fiber Glass Fiber	5
KEL-PF2	495x495x500	1800	5
KEL-PF3	595x295x500	1300	6
KEL-PF4	595x495x500	2200	6
KEL-PF5	595x595x500	2600	8
KEL-PF6	495x295x600	1200	5
KEL-PF7	495x495x600	2200	5
KEL-PF8	595x295x600	1600	6
KEL-PF9	595x495x600	2700	6
KEL-PF10	595x595x600	3200	8

Customized size is available.

Material and operation conditions:

Media	Synthetic fiber Media
Plastic frame	21mm
Aluminum Frame	17-50mm
Frame	Plastic /Galvanized/Aluminum/SUS frame
Pocket	Ultrasonic wave bag
Efficiency
