Home > Products > Metal Numeric Keypad > Silver Multi-Language Metal Keypad For Door Access , Stainless Steel Keyboards
Silver Multi-Language Metal Keypad For Door Access , Stainless Steel Keyboards
Negotiable
/ Piece
1 Piece(Min.Order)
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Waterproof and Vandalproof Stainless Metal Keypad with RS232,USB and PS/2 interfaces
-
Industrial 12 Keys Stainless Metal Keypad for Indoor and Outdoor Application
-
Stainless Numeric Metal Keypad with Serial port or PS/2 or USB interfaces
-
Die-casting Vandalproof numeric keypad for payphone and other devices
-
Multilanguage Vandalproof and Waterproof Industrial Metal Keypad
-
OEM Multilanguage Buttons Encrypted Metal Numeric Keypad / Numeric Key Pad
Product Details
| Brand Name | DPK | Place of Origin | China | |
| Model Number | DPK-5249 |
Product Description
Certification:CE,ROHS, FCC

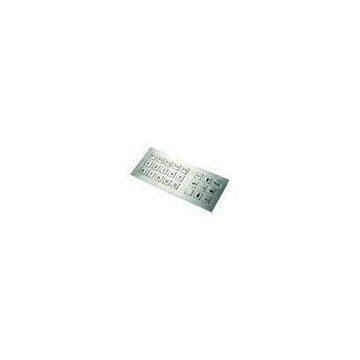

Silver Multi-Language Metal Keypad For Door Access , Stainless Steel Keyboards
Quick detail:
Key Travel: 0.45mm.
Storage temperature: -30°C to +70°C.
Operating RH: 30-90%.
Atmospheric pressure: 60-106Kpa.
No. Item Specification
1 Model No. DPK-5249
2 Dimension 189 mm x 78 mm (Front Panel)
3 Description
24 keys compact format IP65 vandal-proof stainless steel numeric keypad, which is suitable for access controller, decoder optional
4 Main Feature
key-tops are sunk laser-etched in legends and characters via using high quality ink for easy readability, long life to prevent lettering rub-off. Or protrusive engraving available.
With firm tactile key feel, short travel switches, with unique double over-travel protection.
Waterproof/dirt-proof execution according to degree of protection IP65, waterproof and dirt proof encapsulation with unique membrane.
Easily mounting into enclosure or panel, and is provided with PS/2, or USB, RS232, connection output cables that plug directly into the host computer for normal keypad operations.
OS: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/Win7, Linux, Unix, Mac OSX
COMMUNICATION PARAMETER
USB, PS2 or RS232 are all available.
12 actuator on the keypad: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9,*, #. Any keys can be re-defined per customers\' requirements.
5 Mechanical Data
Switching material: Gold-on-Gold.
Actuation Force: 2.00.1N (pressure point).
Key Travel: 0.45mm.
Lettering: laser engraving, or raised letters.
Front panel: brushed stainless steel.
Actuator/keys materials: stainless steel.
G.W. 0.5KGs.
6 Electrical Data
Power supply voltage: 5V DC.
Power Consumption: Under 300mW for operation, under 200mW for non-operation.
Electrical lifetime: > 5 years.
EMC:EN55022(B).
Communication interface: PS2, USB or RS232 are all available.
ENVIRONMENTAL ADAPTABILITY
Operating temperature:-20°C to +60°C.
Storage temperature: -30°C to +70°C.
Operating RH: 30-90%.
Atmospheric pressure: 60-106Kpa.
7 Reliability
RoHS Compliant, CE and FCC
Protection Level: IP65(front panel)
Vandal resistant IK10
Key Lifespan >5 million actuations .
MTBF >20000h.
MTTR <30min.
