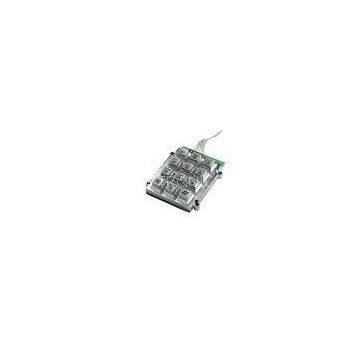

Die-casting Vandalproof numeric keypad for payphone and other devices

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	DPK		Place of Origin	China
Model Number	DPK-5312

Product Description

Delivery Time:5-10 days
Certification:CE,ROHS, FCC

Die-casting Vandalproof numeric keypad for payphone and other devices

Quick detail:

Front panel: brushed stainless steel.

Actuator/keys materials: stainless steel.

G.W. 0.5KGs.

No. Item Specification

1 Model No. DPK-5312

2 Dimension 69.81 mm x 56 mm (Front Panel)

3 Description

12 keys compact format IP65 vandal-proof stainless steel numeric keypad, which is suitable for access controller, decoder optional

4 Main Feature

key-tops are sunk laser-etched in legends and characters via using high quality ink for easy readability, long life to prevent lettering rub-off. Or protrusive engraving available.

With firm tactile key feel, short travel switches, with unique double over-travel protection.

Waterproof/dirt-proof execution according to degree of protection IP65, waterproof and dirt proof encapsulation with unique membrane.

Easily mounting into enclosure or panel, and is provided with PS/2, or USB, RS232, connection output cables that plug directly into the host computer for normal keypad operations.

OS: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/Win7, Linux, Unix, Mac OSX

COMMUNICATION PARAMETER

USB, PS2 or RS232 are all available.

12 actuator on the keypad: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9,*, #. Any keys can be re-defined per customers\' requirements.

5 Mechanical Data

Switching material: Gold-on-Gold.

Actuation Force: 2.00.1N (pressure point).

Key Travel: 0.45mm.

Lettering: laser engraving, or raised letters.

Front panel: brushed stainless steel.

Actuator/keys materials: stainless steel.

Dimensions: 66.0mm x 100.0mm.

G.W. 0.5KGs.

6 Electrical Data

Power supply voltage: 5V DC.

Power Consumption: Under 300mW for operation, under 200mW for non-operation.

Electrical lifetime: > 5 years.

EMC:EN55022(B).

Communication interface: PS2, USB or RS232 are all available.

ENVIRONMENTAL ADAPTABILITY

Operating temperature:-20°C to +60°C.

Storage temperature: -30°C to +70°C.

Operating RH: 30-90%.

Atmospheric pressure: 60-106Kpa.

7 Reliability

RoHS Compliant, CE and FCC

Protection Level: IP65(front panel)

Vandal resistant IK10

Key lifespan >5 million actuations .

MTBF >20000h.

MTTR <30min.
