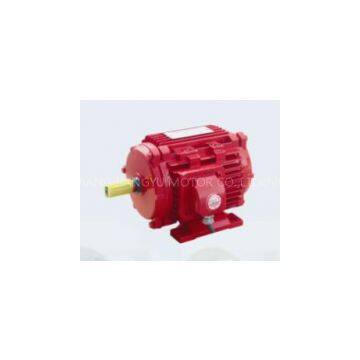

YFX Series of Three-phase Asynchronous Motors of High Ambient Temperatures for Smoke Exhaust Fan

INTRODUTION:

This series of motors is matched used forfan, its electrical performance is designed according to fan load,energy-efficient. Insulation grade is F or H, so it can continuously work inthe high temperature or humidity environment.

1.       Framesize: 80~180

2.       Pole:2, 4, 6, 8

3.       Output:0.5KW~18KW

4.       Ratedvoltage: 380V

5.       Ratedfrequency: 50HZ

6.       Insulationclass: F/H

7.       Protectionclass: IP55

APPLICATIONS：

Widely be used in fire-fighting ventilationof shopping, packing, high-rise buildings, tunnel, subway and so on.

If the motor of which the frequency,voltage and connection are specially, please stale when ordering.
