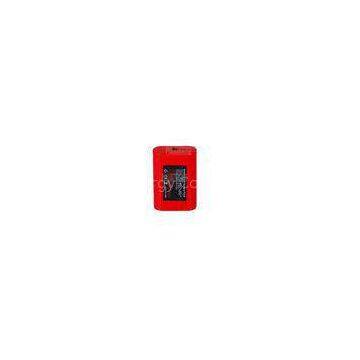

7.4V 2600mAh High Capacity Li-ion Battery Pack for Heated Clothes With BAK, Samsung Cells

Model No.

LX-DRF01H

Nominal Voltage

7.4v

Working Voltage

6V-8.4V

Nominal Capacity

2600mAh

Charge Cut-off Voltage

8.4v

Charge Current

1A

Standby Current

≤15μA

Max. Output Power

15W MAX

Operating Efficiency

≥99%

Loading Resistance

5Ω-200Ω

Charge Method

CC/CV Constant Current/Constant

Charge Temperature

0℃—40℃

Discharge Temperature

-20℃～ +60℃

Charge Duration

2-3hrs(Standard)

Cycle Life Time

5 Above 500 cycles

Internal Impedance

PCB Internal Impedance<80mΩ;

Battery Internal Impedance <180mΩ

LED Display

4-heat settings, capacity level indication

Output Terminal

DC3.5*1.35*7mm

Usage

For heated clothes, heated seat cushions, etc.

Battery Size

70*48*22mm

Weight

130g

Color

black, white, red, pink, blue, brown, etc.

Certificates

CE, FCC, ROHS

Lead Time for Sample

3~7 days

Lead Time for Bulk Order

7~15 days

Remaining Capacity

Button

LED①

LED②

LED③

LED④

80%～100%

↓

●

●

●

●

60%～80%

↓

●

●

●

○

40%～60%

↓

●

●

○

○

20%～40%

↓

●

○

○

○

0%～20%

↓

●|○Blink
