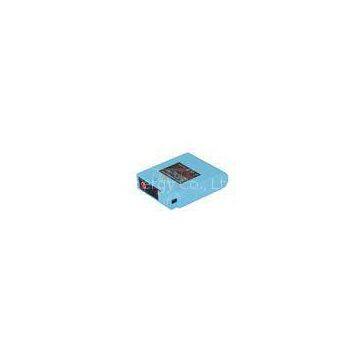

Portable LED Display 12V 2200mAh heated Li-ion battery packs with 12V output

Name: Portable LED Display 12V 2200mAh heated Li-ion battery packs with 12V output
Brand: PoMaX
Price: Negotiable

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Product Details

Brand Name:

PoMaX

Place of Origin:

China

Model Number:

LX-DRF05

Delivery Time:In 7 days
Certification:CE, FCC, RoHs

Portable LED Display 12V 2200mAh heated Li-ion battery packs with 12V output

Parameters

Model No.	LX-DRF05
Nominal Voltage	11.1v
Working Voltage	9V-12.6V
Nominal Capacity	2200mAh
Charge Cut-off Voltage	12.6v
Charge Current	1A
Standby Current	≤50μA
Max. Output Power	25W MAX
Operating Efficiency	≥99%
Loading Resistance	5Ω-200Ω
Charge Method	CC/CV Constant Current/Constant
Charge Temperature	0℃—40℃
Discharge Temperature	-20℃～ +60℃
Charge Duration	2.5hrs(Standard)
Cycle Life Time	Above 500 cycles
Internal Impedance	PCB Internal Impedance<80mΩ; Battery Internal Impedance <180mΩ
LED Display	4-heat settings, capacity indication
Output Terminal	DC5.52.110mm
Usage	Heated jackets, heated seat cushions, etc.
Battery Size	927223mm
Weight	190g
Color	White, black, red, pink, blue, brown, etc.
Certificates	CE, FCC, ROHS
Lead Time for Sample	3~7 days
Lead Time for Bulk Order	7~15 days

Operation:

Power Indication:

①No Load, press ON/SETUP button to power on, LED in RED color, 90%<= power<=100%

②No Load, press ON/SETUP button to power on, LED in ORANGE color, 30%<= power<=90%

③No Load, press ON/SETUP button to power on, LED in GREEN color, power<=30%

Output Indication:

①Press ON/SETUP button, LED in RED color, the output power=98%

②Press ON/SETUP button, LED in ORANGE color, the output power>=75%

③Press ON/SETUP button, LED in GREEN color, the output power>=50%

④Press ON/SETUP button, LED flash, the output power>=25%

⑤Press ON/SETUP button, LED is off, the battery power off

Application:

heated snow sports wears, heated stadium seat cushions, heat
