3.5 Inch Wireless LCD Video Borescope With Detachable Cable

3.5 Inch Wireless LCD Video Borescope With Detachable Cable thumbnail-1
3.5 Inch Wireless LCD Video Borescope With Detachable Cable thumbnail-2
3.5 Inch Wireless LCD Video Borescope With Detachable Cable thumbnail-3
3.5 Inch Wireless LCD Video Borescope With Detachable Cable photo-1

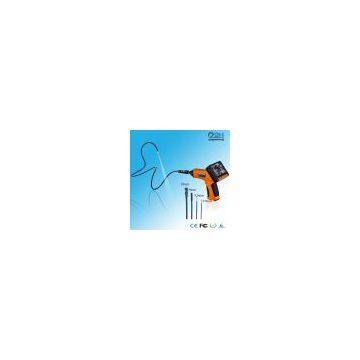

3.5 Inch Wireless LCD Video Borescope With Detachable Cable photo-2

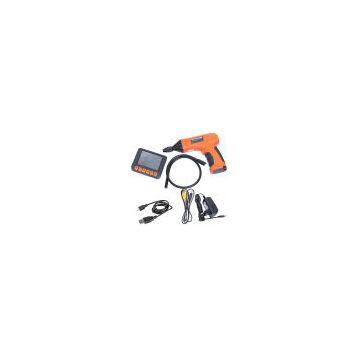

3.5 Inch Wireless LCD Video Borescope With Detachable Cable photo-3
US$ 190 - 190 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
QBH
Place of Origin:
China
Model Number:
AV7810
Contact Supplier Request Quote Chat Now
Shenzhen QBH Technology Development Co.,Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name QBH
Place of Origin China
Model Number AV7810

Item NO: AV7810

Part Name:Wireless Video Borescope with Detachable Snake Tube and Screen

Specification

Image Sensor:VGA CMOS Sensor, Sensor area 1 /18"/12"/10"/4"

Effective Pixel:320(H)x240(V)(N) /720(H)x525(V)(N)/720(H)x625(V)(P)

Focus distance:20mm-80mm

View angle:60 degree Fov(D)

LED illumination:2 leds, illumination can be adjustable in 6 levels

USB interface:USB 2.0

Data output

Video output, connected to TV or PC

Screen 3.5 TFT LCDQVGA 320*240 16.7M color

Record and Photograph

Resolution:640*480

0 standard JPEG video

(w/ audio) resolution:30fps

Photo format:JPG \\\\BMP \\\\JPEG

Video Format:AVI

Image capture format:JPEG

Memory card:(SD card not included)Supports SD card

capacity up to 32GB

Functions

Image can be displayed with 180 degrees rotating

Picture freezing and taking photos in frozen state

Real time clock with photo and video

image dynamic monitoring (motion detecting) function

To enlarge or reduce the maximum:8 times

Automatic recognition of NTSC/PAL

Composite video output

Ten minutes without operation, automatic closure of TFT into power saving mode

Language:English,French,German,Italian,Spanish,Portuguese,Simplified Chinese,Traditional

Chinese,Japanese,Korean,Russian.

Equipment dimensions

Monitor dimension:112*82*25.5mm

Handle dimension:195*140*45 mm

Probe Dimension:3.9mm(5.5mm/9.0mm/17mm)

Snake tube dimension:1000MM

PE box size:450*350*130 mm (Optional)

Host Voltage:5V

Working Current:600MA/H

Charger/Power

Output voltage:5V

Input voltage100-220V

Input current:2A

3.7V builit-in Li rechargable battery in screen part

Power:4 AA Battery in handle

Working Temperature:0-45 centigrade

Standard Accessory:1 A dapter,1 USB Cable,1 AV output Cable

Optional Accessories:1XMagnet,1X Hook,1X Reflex Mirror
