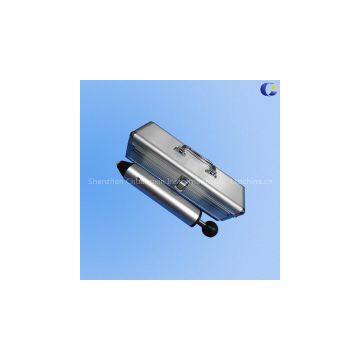

IEC60068-2-75 Single Spring Impct Hammer, Sprin Hammer, Impact Hammer Test photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Chuangxin
Place of Origin:
China
Model Number:
CX-T01
Contact Supplier Request Quote Chat Now
Shenzhen Chuangxin Instruments Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Chuangxin
Place of Origin China
Model Number CX-T01

IK01 Spring Impact Hammer



Required by many Standards to test the mechanical integrity of product enclosures. After applying the impact with the hammer, the product is examined with accessibility probes to determine access to shock, energy, and injury hazards. Built in exact accordance to IEC, EN, UL, CSA and other international Standards.



Product Details

  • Body: Includes release mechanism and striking element guide, mass 1250 g.

  • Striking element: With cocking knob and hammer head, face is polyamide, hemispherical with a radius of 10 mm, hardness of HR85-100, mass 250 g

  • Release Cone: mass 60 g, 10N release force

  • Impact Force: Single force and adjustable models available in impact energies of 0.14,0.20, 0.35, 0.50, 0.70 and 1.0 J

  • Custom padded carrying case included.

  • Model:CX-T1:Single impact force models(0.2J,0.35J,0.5J,0.7J,1J,select)

  • Model:CX-T2:Impact force:2J±0.1J

  • Model:CX-T6:Adjustable models available in impact energies of 0.14J,0.20,0.35,0.50,0.70 and 1.0J

Types:

IK01IK02IK03IK04IK05IK06IK07IK08IK09IK10
0.14J0.2J0.35J0.5J0.7J1J2J5J10J20J



Technical Parameters:

Length211mm
Weight1250g
OD50mm
Hammer Weight60g
Hammer radius10mm
The release force of impact<10N
