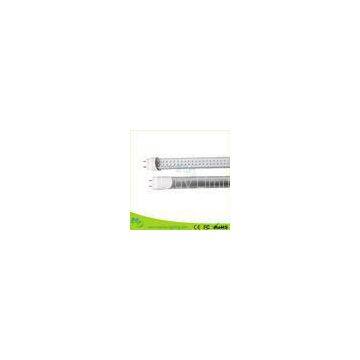

SMD3528 18w / 22 Watt SMD LED Tubes For Schools Indoor Lighting , 4 Foot 4000k Tube

Delivery Time:3~5 days for samples, 7~10days for batch delivery
Certification:UL, FCC, EC, RoHS

SMD3528 18w / 22 Watt SMD LED Tubes For Schools Indoor Lighting , 4 Foot 4000k LED

Quick Detail:

Replaces up to a 55W Fluorescent bulb Compatible with magnetic ballasts 2, 3, 4, 5 feet available Efficacy 98LM/W 10 day unconditional return(From the day you receive the goods.)

Description:

* Direct replacement: Compatible with magnetic ballast
* Thermal dissipation:1mm thick Aluminum PCB, 18mm wide Aluminum PCB, 1mm thick Aluminum housing

* High Lumen: Our 4’ tubes can reach 1750LM.
* Consistent light: No dark spot, Uniform and soft light distribution
* 4 year warranty: Within 4 years, any issues of product quality are on us.

*SMD3528: High bright SMD3528, Small light decay

* 50 000 hrs lifespan of LED: 50,000 hour life, or more than 17 years operating 8 hours a day, is based on L70 standards (at 25 degrees C based on LM80 data). When the LEDs reach 30 percent lumen depreciation, end-of-life is reached. This life cycle far exceeds halogen and CFL, and is almost double the life of linear fluorescents.

* Universal Voltage: AC 85-285V

* Cert.: CE, EMC & ROHS

* Dimmable optional

* Rotatable.: Rotatable End-cap is optional

Applications:

Widely used in the hotel, meeting room, offices, hospital, schools, factories, commercial lighting, shopping malls, supermarkets, kitchen, display, backlight, home indoor lighting and so on.

Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)

Model	Length	Chip	Color Temp.	Voltage	Quantity of LEDs	Power	PC housing	Lumens
T8	600mm	SMD3528	2500-9900K	AC85~V265V	144pcs	9 w	Clear	900 lm
Frostied	780 lm
900mm	216pcs	14 w	Clear	1350 lm
Frostied	1150 lm
1200mm	288pcs	18 w	Clear	1800 lm
Frostied	1550 lm
1500mm	360pcs	22 w	Clear	2250 lm
Frostied	1950 lm
