Certification:CE,FCC

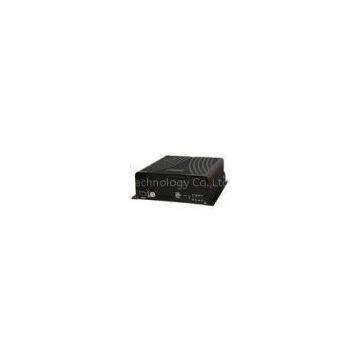

4 Channel HDD Mobile DVR With GPS 3G Wifi For Vehicle
Description:
• 4-Channel Full D1 HDD Mobile DVR, Vehicle Mobile DVR;
• D1,HD1,CIF as optional.
• Linux operation system,H.264 video compression, Dual streaming;
• Support 2.5\" 1TB HDD, and support SD card Max 128GB;
• Very good Vibration resistance solution and good metal housing;
• Power-off working time can still work 8 seconds and 30 minutes with built-in Patent UPS power-supply;
• Support external vehicle mobile data protected box for data protection.
• External WIFI(IEEE802.11n, Up to 300 Mbps physical data transfer speed, satisfy huge data Transmission);3G(WCDMA / EVDO/HSPA(TD-SCDMA),GPS,WIFI(built-in and external) is optional.
• Support Iphone/Ipad/Android phone and PC to remote live view at any time(3G).
Product Technical parameters:
|
System |
language |
Chinese/ English |
|
Operation system |
Linux |
|
|
Operation interface |
Graphical User interface(OSD menu) |
|
|
Password |
User /Admin password |
|
|
Control mode |
IR remote control |
|
|
Video |
Video input |
4-ch video composite input |
|
Video output |
1-ch composite output |
|
|
Display mode |
Single/ 4-ch video |
|
|
Video compression |
H.264 Main profile PAL:100f at D1/s, NTSC: 120f at D1/s |
|
|
Video Signal |
NTSC,PAL |
|
|
Audio |
Audio input |
4-ch audio input |
|
Audio output |
1-ch audio output |
|
|
Recording mode |
Audio & Video sync Recording |
|
|
Phone |
Support IP call and analog voice call |
|
|
Image processing & storage |
Image format mode |
CIF/HD1/D1 optional |
|
Video stream Standard |
ISO14496-10 |
|
|
Video bitrate |
CIF: 1536Kbps ~ 128Kbps,4 levels optional. Highest:0 level; Lowest: 3 level HD1: 2048Kbps ~ 512Kbps,4 levels optional. Highest:0 level; Lowest: 3 level D1: 4Mbps ~ 1Mbps,4 levels optional. Highest:0 level; Lowest: 3 level |
|
|
Audio Bitrate |
8KB/s |
|
|
Storage |
Built-in a SATA HDD, support HDD Max 1TB; And built-in a SD card, Support SD card Max 128GB; |
|
|
Alarm |
Alarm input |
8 alarm input, below 4V is low level alarm, above 4V are high level alarm |
|
Alarm output |
2 alarm output, output high level:12V |
|
|
Communication Interface |
RS485 Interface |
Support 3-RS485 interface |
|
RS232 Interface |
Support 1-RS232 interface |
|
|
|
