Piezoelectric Element Piezo Ceramic Plate 2200pF For Automatic Ultrasonic Cleaner

Delivery Time:On stock
Certification:CE ROSH TUV

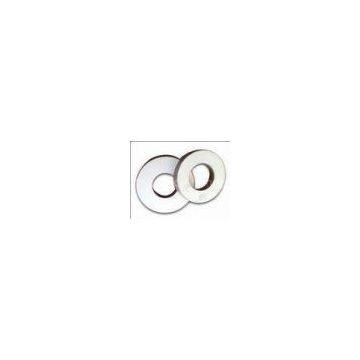

32/12/5 Ring Piezoelectric Ceramic

Quick Detail

32/12/5Ring Piezoelectric Ceramic:

all kinds of piezoceramics and piezoelectric ceramic.we can produce according to the required size.

the materials have the pzt4,pzt5 ,pzt8 or other required material.

Piezoelectric Element Piezo Ceramic Plate 2200pF For Automatic Ultrasonic Cleaner

Description

32/12/5 Ring Piezoelectric Ceramic:

◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.

◊ High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.

◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.

◊ Good construction: fastened by bolt, easy for assembling, high reliability.

Applications

widely used in all kinds of ultrasonic sensor.ultrasonic transducer.Medical,ultrasonic detectors and so on

Specifications

32/12/5 Ring Piezoelectric Ceramic:

Dimensions (mm)	Capacity C(pF)	Weak field dissipation Tgδ (12v)	Radial frequency Fr (KHz)	Resonance impedance Zm (∩)	Coupling modulus Kp (%)
Φ32ｘΦ15ｘ5	2200±15%	≤2.0%	40.8±5%	≤250	≥45

Competitive Advantage of Ring Piezoelectric Ceramic:

◊ High efficiency

◊ High amplitude:

◊ Good heat resistance

◊ Good construction:
