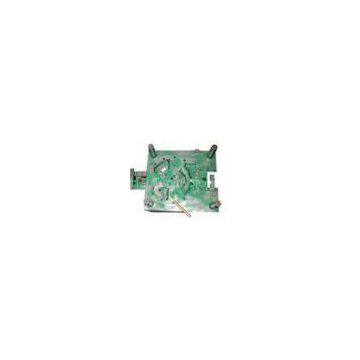

Two Plate Injection Mould Parts For Pipe Fitting With 2 Cavity
Quick Detail:
1. Gate type: sub-gate, fan gate, point gate, edge gate, valve gate, tip gate etc according to our customers requires.
2. Mold base standard: LKM Local standard, DME or HASCO,Customize according to customers\' requirements
3. Cavity material: H13 HRC48-52
4. Mold life: 1000k shots or according to customers quantity condition to decide it with saving cost for our customers.
5. Standard of mold accessories: LKM, DME, HASCO, MISUMI, Meusburger, CUMSA, Progressive, INCORE, HRS, Husky, YUDO, PETS, MOLD-MASTER, MERKLE, Parker, HPS, LKM, EUCHNER, RJG, cilpres, NITTO, CRACK, ASSAB, GSW DIN standard, BOHLER, AISI standard, DAIDO JIS standard, PUNCH etc according to our customers requires.
6. Plastic material: PP
7. The part name: pipe fitting (plastic injection mold)
Applications:
Molding the plastic product by plastic injection machine
Specifications:
|
|
pipe fitting (plastic injection mold) |
|
Plastic material |
PP,PE,PA,PC,ABS,PC+ABS,POM,PVC,PMMA,PS,PPO,ASA,TPU,TPR,EVA,PP+GF, PC+GF,POM+GF,PA+GF,PPT,PET,PETG,SEBS etc. |
|
3.mould base material |
S50C,P20,S136 etc |
|
4.cavity material |
H13 HRC48-52,S136,420, P20, D2, 1040, 0-1, S-7, A2, 1.2344, 1.2083, 1.2311, 1.2739, 1.2343, 1.2510, 1.2767,NAK80,SKD61,718,738,DF-2 etc |
|
5.mold life |
1000k shots or according to customers quantity condition to decide it with saving cost for our customers. |
|
6.cavity number |
2 |
|
7.runner |
cold |
|
8.gate type |
sub-gate, fan gate, point gate, edge gate, valve gate, tip gate etc according to our customers requires. |
|
9.mould weight |
360 kg |
|
10. mould base standard |
LKM Local standard, DME,HASCO,Customize according to customers\' requirements |
|
11.cycle time |
40second |
|
12. standard of mold accessories |
LKM, DME, HASCO, MISUMI, Meusburger, CUMSA, Progressive, INCORE, HRS, Husky, YUDO, PETS, MOLD-MASTER, MERKLE, Parker, HPS, LKM, EUCHNER, RJG, cilpres, NITTO, CRACK, ASSAB, GSW DIN standard, BOHLER, AISI standard, DAIDO JIS standard, PUNCH etc according to our customers requires. |
|
software |
Auto CAD ,UG, Pro-E ,Solid Works,Moldflow,etc. |
|
14. File Formats |
Auto CAD (DWG), DXF, JPG or JEPG, PDF, Pro-E or Pro/Engineer(DRW,PRT), IGES, STEP,XTL,UG parts etc. |
|
15. injection molding machine |
About 120T |
|
16. MOQ |
1 set |
|
17. payment |
T/T, To be negotiated |
|
18.package |
Wooden case or Wooden box with steel frame |
|
19. OEM or ODM |
is available |
|
20. mould logo |
Based on customer requires |
|
21. after-sales service |
one year is warranties |
Description:
Ejection type: lifter ejection
Locating ring Dimension: Ф100
The part name: pipe fitting
Mold type: Plastic Injection Mould with cold runner system
KO Pattern: 200*200
Sprue Radius: SR 19
Part Material: PP
Mold construction description: Hot runner system, 3 inner sliders and 2 outer large sliders, 3 lifters and 2 plates, many shut off area in the mold, Explosion core.
