Precision CF3M Stainless steel Precision Casting machining ISO9001
- 0 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
- CE certificated hydraulic press/Clothes/Bedclothes/Cotton/Woolen/Textile Baler machine
- 20 years manufacturer, automatic hay and straw baling machine
- more than 20 years factroy supply CE certificated used clothes and textile baling machine
- more than 20 years factory supply Hard plastic/ Fiber/Cotton/Woolen/Clothes/Textile Baler machine press
- more than 20 years factory supply plastic baler machine
- more than 20 years factory supply Clothes/Bedclothes/Cotton/Woolen/Textile Baler machine
Product Details
Brand Name: | Winnington | Place of Origin: | China | Model Number: | Stainless steel precision casting 004 |
Product Description
Certification:PED/AD2000
Precision Casting with machining Stainless steel CF3M ISO9001 certificated.
Quick Detail:

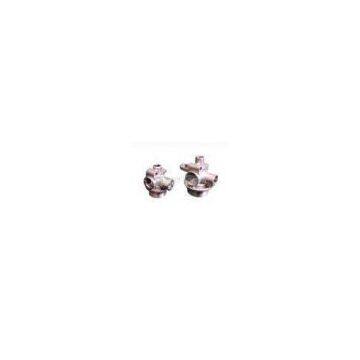

Stainless steel precision cast part of a valve component; Material: CF3M (316L) stainless steel; Weight: 0.9kg; Cast weight: 10g~80KG; PED and ISO9001:2008 certificated; Chemical composition test operated by German spectrometer; NDT test can be operated.Description:
Precision cast for stainless steel with lost wax process for various industries, weights up to 80kg, Min wall thickness 1.5mm, Tolerance 0.1mm;
Winnington cast a wide array of materials: stainless steel, carbon steel, duplex alloys, nickel-based materials, and more with different sizes and configurations:
Stainless Steel (70%) |
Carbon Steel |
Alloy Steel |
CF3M (AISI 316L), CF8M (AISI 316), CF8 (AISI 304),CD4MCu, CD4MCuN,ANC20,1.4408,1.4517, 1.4306, 303, 430, 420, 17-4PH, SCS1 and more |
1020, SCS16, SCS14, SCS13, 1.0619, WCB, S355JR, 1045 , LCC and more |
ANC2,CLA12C,42CrMo,8Q,4140,6150 and more |
OVERVIEW OF THE PRECISION CAST-INVESTMENT CASTING PROCESS
Precision Investment casting, often called lost wax casting, is regarded as a casting process to build near-net-shaped metal parts from almost any alloy. The most common use of investment casting in more recent history and has been the production preference of components requiring complex, especially thin-wall castings.
The investment casting process begins with fabrication of a sacrificial pattern with the same basic geometrical shape as the finished cast part. Patterns are normally made of investment casting wax that is injected into a metal wax injection die. Once a wax pattern is formed, it is assembled with other wax components to form a metal delivery system , called the gate and runner system. The entire wax assembly is then dipped in a ceramic slurry, covered with a sand stucco, and allowed to dry. The dipping and stuccoing process is repeated until a shell of ~6-8 mm is applied.
Once the ceramic has dried, the entire assembly is placed in a steam autoclave to remove most of the wax. After autoclaving, the remaining amount of wax that soaked into the ceramic shell is burned out in a furnace. At this point, all of the residual pattern and gating material is removed, and the ceramic mold remains. The mold is then preheated to a specific temperature and filled with molten metal, creating the metal casting. Once the casting has cooled sufficiently, the mold shell is chipped away from the casting. Next, the gates and runners are cut from the casting, and final postprocessing (shot blasting, machining, polishing) is done to finish the casting.
Applications:
Pumps
Valves
Pipe Fittings
Marine and Oil
Machinery
Power & Energy
Automotive
Mechanical Components
Specifications:
Standards |
ASTM,JIS,DIN,BS,MIL |
Maximum Casting Size |
500*500*350mm |
Casting weight |
10g~80kg |
Wall thickness |
1.5-2mm Min |
Casting process type |
silica sol lost wax casting process |
Machining |
CNC machining, CNC lathe (Japan machines) |
Surface finish |
electro polishing, satin, hand polished, pickled, zinc plating, vibratory polishing; |
Tolerances |
According to VDG P690 |
Physical performance |
Tensile test, Impact test, Hardness test |
Chemical composition test |
Spectrometer |
NDT test |
Dye test, X ray test etc |
Competitive Advantage:
One-stop Services of Winnington Casting
From wax die making, wax injectio
