Custom Stainless Steel Precision Investment Castings Valve Body PED DIN BS MIL

Delivery Time:30-90 days
Certification:PED/AD2000

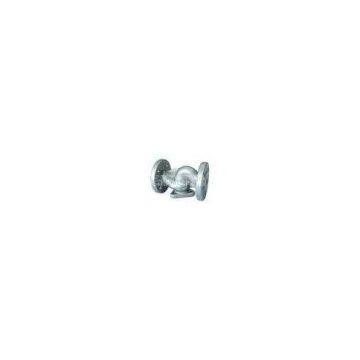

Valve body precision Investment casting 1.4581 CNC machining capacity in house, foundry with PED certificate.

Quick Detail:

Casting of valve body for flow control industry; Casting process: silica sol lost wax method; Foundry with PED 97/23/EC & AD2000 W0 Certifications; ISO9001:2008 certificated; Chemical composition tested by German spectrometer; NDT such as Dye test, X ray test are available.

Description:


Investment casting with ceramic shell process, die making and CNC machining capacity in house. Stainless steel, alloy steel, carbon steel investment castings weight from 10g to 80kg.

The most common material that Winnington cast:

Stainless Steel (70%)	Carbon Steel	Alloy Steel
303, 430, 420, CF3M (AISI 316L), CF8M (AISI 316), CF8 (AISI 304),CD4MCu, CD4MCuN,ANC20,1.4408,1.4517, 1.4306, 1.4581, 17-4PH, SCS1 and more	WCC, 1020, S355JR, SCS16, SCS14, SCS13, 1.0619, WCB, 1045 , LCC and more	ANC2,CLA12C,42CrMo,7Q,8Q,4140,6150 and more

Investment Casting Process:


Wax die making: Our wax tooling is made of Aluminum which is easy for machining and fast for cooling, at the same time, light for handling. Wax injection: Filling the entire mould with molten wax, and let it cool, until a desired wax pattern is shaped and harden. Assemble the wax patterns: The wax patterns are welded to a runner system by a heated metal tool according to a certain pattern cluster(tree) design. Investment: The ceramic mould, known as the investment, is produced by three repeating steps: coating, stuccoing, and hardening. The first step involves dipping the cluster into a slurry of fine refractory material and then letting any excess drain off, so a uniform surface is produced. This fine material is used first to give a smooth surface finish and reproduce fine details. In the second step, the cluster is stuccoed with a coarse ceramic particle, by dipping it into a fluidised barrel, placing it in a rainfall-sander. Finally, the coating is allowed to harden. Dewax: The investment is then allowed to completely dry, which can take 16 to 48 hours. It is then turned upside-down and placed in a autoclave to melt out and/or vaporize the wax. Burnout & preheating: The mold is then subjected to a burnout, which heats the mold to remove any moisture and residual wax, and to sinter the mold. The mold is preheated to allow the metal to stay liquid longer to fill any details and to increase dimensional accuracy. Pouring: The investment mold is then placed cup-upwards into a tub filled with sand and be poured. After treatment: The shell is then hammered, media blasted, vibrated, waterjeted, or chemically dissolved to release the casting. Further actions like weld repairing,grinding, shot blasting,CNC machining, electro plating will be taken to get a final cleaned precision casting part.



Applications:


Pumps
Valves
Pipe Fittings
Automotive
Marine and Oil
Machinery
Power & Energy
Other Mechanical Castings



Specifications:

Casting process type	silica sol lost wax casting
Maximum Casting Size	500*500*350mm
Casting weight	10g~80kg
Wall thickness	1.5-2mm Min
Standards	ASTM,JIS,DIN,BS,MIL
Machining	CNC machining, CNC lathe
Surface finish types	electro polishing, satin finish, hand polishing, pickled, zinc plating, vibration polishing;
Tolerances Standard	VDG P690
NDT test service	Dye test, X ray test etc


Competitive Advantage:
