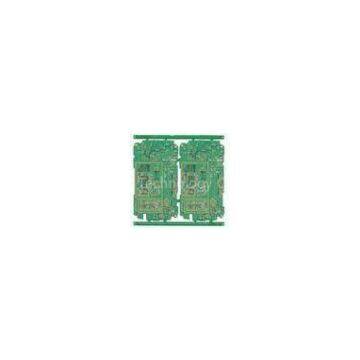

FR-4 Green Solder Mask Mobile Phone PCB Copper Clad Board

Shenzhen XingdaYun Technology Company Ltd.
FR-4 Green Solder Mask Mobile Phone PCB Copper Clad Board thumbnail-1
FR-4 Green Solder Mask Mobile Phone PCB Copper Clad Board photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
XingdaYun
Place of Origin:
China
Model Number:
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name XingdaYun
Place of Origin China
Delivery Time:Prototype 3 days, Mass Production 8 Days
Certification:ISO 9001:2008,ISO 14001:2004, UL, SGS, CTI
FR-4 Green Solder Mask Mobile Phone PCB copper clad board Specifications fr4 clad copper clad pcb
1.high precision
2.FR-4 base material
3.HASL
4.UL ,ISO9001 approved

Brief introdution of our company

Shenzhen XingdaYun Technology Co., Ltd. is a professional pcb manufacturer ,our products include blank pcb, single sided pcb,d ouble sided pcb,multilayer pcb,flexible pcb,fr4 pcb,fr2 pcb,fr1 pcb,cem1 pcb,cem3 pcb,aluminum pcb,etc.

General Specifications  Capability

Article Description Capability
Size Max.Finshed Size 20.9”x24.4”(530mm x 620mm )
Board Thickness Standard 0.004”to0.16 ” ±10% ( 0.1mmto4.0mm±10% )
Min.  Single/ Double-sided:0.008”±0.004”(0.2mm ±0.1mm)
4-layer:0.01”±0.008”(0.4mm ±0.1mm)
8-layer :0.01”±0.008”(0.4mm ±0.1mm)
Bow and twist < 7/1000
Copper  Weight  Outer Cu weight 0.5oz ~ 3.0oz
Inner Cu wight 0.5oz ~ 3.0oz
Laminate Materials FR-4,FR-1,,FR-2,CEM-1,CEM-3
Board Cutting   Max. number of layers 8
Min. thickness for inner layers (Cu thickness are excluded) 0.003”(0.07mm)
Drilling       Min. Size 0.0078”(0.2mm)
Max. Size 0.3”(8.0mm)
Drill Deviation ± 0.002” (0.050mm)
PTH hole tolerance

± 0.002” (0.050mm)

NPTH hole tolerance ± 0.002” (0.050mm)
Plating Min. hole size 0.0008” (0.02mm)
Aspect ratio 20(5:1)
Solder Mask Color green,light green,white,black,dark brown,yellow,red,blue
Min. solder mask clearance 0.003”(0.07mm)
Thickness 0.0005”-0.0007”(0.012mm-0.017mm)
Silkscreen   Color White,black,yellow,red,blue,green
Min. Size 0.006” (0.15mm)
Electrical testing Flying Probe Tester Y
Controlled Impedance   Tolerance ±0.5%
Impedance tester Tektronix TDS8200
Routing     End Mills Test ± 0.006”(0.15mm)
CNC Tolerance ± 0.004”(0.1mm)
V-Cut Depth( residual thickness ) FR-4(1/3+-0.1mm);FR-1,FR-2,CEM-1,CEM-3(1/2+-0.1mm)
V-cut angle 15°,18°,30°
V-cut Shape line,hole,V-shape
Surface Finish HASL,HASL pb free,immersion gold,immersion silver,immersion tin,O.S.P (Entek),S/G plating,ENEPIG,G/F plating,carbon…
Gold Finger angle 15° 30° 45° 60°
Others   UL Cert. Y
ISO Cert. ISO9001
TS16949 Y
ISO14000 Y
