Semi-automatic Grinding Machine,pcd Cbn Grinders

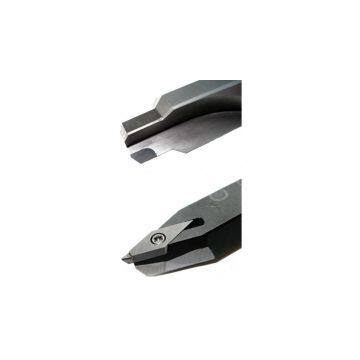

1.Our grinder is an equopment which are used to economically manufacture and grinding of PCD, PCBN and CVD tools, also can be used for grinding hard alloy cutting tools and other materials.It can grind thestandard or non standard car blade, milling cutter, boring cutter, cutter and variety of other types of tools, very easily grind out the angle and radius in these tools

2.Feature of Model
A.Bilateral position for ergonomics
B.Radial clamping for spindle rigidity
C.Spindle with cooling brings a long life span
D.Servo Variable oscillation automatically
E.Servo control, auto & manual feeding
F.CCD monitoring & measuring, automatic centering
E.Graph process and video Demo on PC
F.Central lubrication, coolant with filter

3.Dimensions and Weight
Overall Dimensions L×W×H:1700×1150×1970mm
Weight:1800Kg

4.we also supply different grinding wheels and give out good suggestion for different grit size grinding wheels when processing different workpiece such as pcd,pcbn,cemented carbide.

5.If you need our grinding machine,welcome to contact Ms Nina,skype:nina-superhardtools
