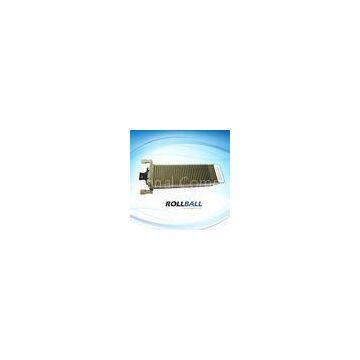

Highly Integrated 300meters Fiber Optical Transponder 10G Module XENPAK SR TRx850nm
Features
l Compatible with XENPAK MSA Rev.3.0
l Support of IEEE802.3ae up to 300m (OM3 MMF)
l Power Consumption 1.8W (typ.)
l Temperature Range 0 to 70°C
l Vertical Cavity Surface Emitting Laser at 850nm (VCSEL)
l Adaptable Power Supply (APS:+1.2V)
l SC duplex connector
l Hot pluggable 70-pin connector with XAUI electrical interface
l Management and control via MDIO 2-wire interface
l Compatible with RoHS
Applications
l 10GBASE SR 10G Ethernet
Product Description
The RXENAPK-85192-SRD is a highly integrated,Serial optical transponder module for high-speed,
10Gbit/s data transmission applications. 4×3.125Gbps Ethernet Signal Input by XAUI Interface.An
integrated Coder / Decoder and multiplexer / demultiplexer (SERDES: Serializer / Deserializer). Designing
for 10GBASE-LR Transmission with a Vertical Cavity Surface Emitting Laser at 850nm. The transponder
operates within a wide case temperature range of 0°C to +70°C and offers optimum heat dissipation and
excellent electromagnetic shielding which enables high port densities for 10 GbE systems. A 70 pin electrical
connector and a duplex SC connector optical interface assure that connectivity is compliant to the XENPAK
MSA Rev.3.0.
Specification:
Optical Characteristics
|
(VCC3 = 3.14 V to 3.47 V, VCC aps = 1.152 V to 1.248 V, TC = 0°C to 70°C, BER1E-12, Bit Rate 10.3125) |
|||||
|
Parameter |
Symbol |
min. |
typ. |
max. |
Unit |
|
Transmitter |
|||||
|
Average Launch Power |
PAvg |
–5 |
–1 |
dBm |
|
|
Transmitter and Dispersion Penalty |
TDP |
3.9 |
dB |
||
|
Center Wavelength Range1) |
λ |
840 |
850 |
860 |
nm |
|
RMS Spectral Width1) |
Δλ |
0.4 |
0.45 |
nm |
|
|
Extinction Ratio |
ER |
3.5 |
6.5 |
dB |
|
|
Relative Intensity Noise12OMA |
RIN |
–128 |
dB/Hz |
||
|
Eye Mask Definition |
According to IEEE 802.3ae |
||||
|
Optical Return Loss Tolerance |
ORLT |
12 |
dB |
||
|
Average Launch Power of OFF Transmitter |
Poff |
–30 |
dBm |
||
|
Receiver |
|||||
|
Stressed Receiver Sensitivity in OMA |
Pssen |
