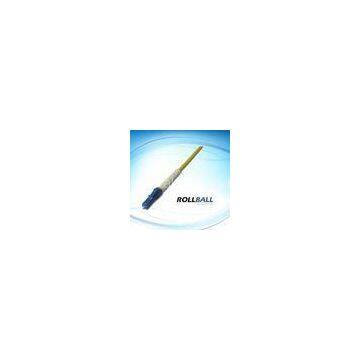

UPC / APC / PC Fiber Optic Components Patch Cord LC For Telecommunication Networks
Product Description
LC Fiber Patch Cord, Low insertion loss and back reflection loss, Good echangeability and durability, Length customizedCompliant with Telcordia GR-326-CORE standard, RoHS compliance.
Application:
1. Gigabit Etherenet
2. Active dvice termination
3. Telecommunication networks
4. Vidio
5. Multimedia
6. Industrial
7. Military
8. Premise installations.
Feature:
1. Low insertion loss and back reflection loss
2. Good echangeability
3. Good Durability
4. High temperature stability.
5. Standard: Telcordia GR-326-CORE
Specification:
|
Mode |
SM |
MM |
|
|
Polish |
UPC |
APC |
PC |
|
Insertion Loss |
Typical ≤0.2dB Maximum ≤0.3dB |
≤0.25dB |
|
|
Return Loss |
≥50dB |
≥65dB |
≥35dB |
|
Interchangeability |
≤0.2dB |
||
|
Repeatability |
≤0.1dB |
||
|
Durability |
≤0.2dB (1000 times mating) |
||
|
Tensile strength |
> 10kg |
||
|
Temperature |
≤0.2dB (-40+85 sustain 100 hours) |
||
|
Humidity |
≤0.2dB (+25+65 93 R.H.100 hours) |
Ordering Information:
|
Boot (cable size) |
Boot Color |
Fiber Type |
Cable number |
Ferrule |
Length |
|
0.9mm 2.0mm 3.0mm |
Biege White Blue |
9/125um SM 50/125um MM 62.5/125um MM OM3 OM4 |
Simplex Duplex Multi-fiber |
PC APC |
Customized |
