Certification:CE

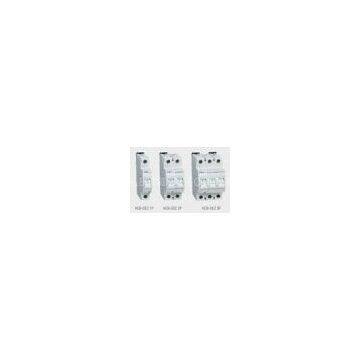

High breaking capacity Mini Circuit Breaker , 3 phase MCB switch with 6 , 10 , 16 , 20 amp
Quick Detail:
Place of Origin: China Brand Name: VECAS Certificate:CE Electricity Type: AC Phase::3 Pole: 4 Rated voltage: AC240/415V Rated current :1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63Description:
HCB-OEZ Mini Circuit Breaker Specification and Feature :
■ Protection against both overload and short circuit
■ High breaking capacity
■ Contact position indication
■ Applicable to terminal and pin/fork type busbar connection
Technical Data
Pole No. 1, 2, 3, 4 Rated voltage AC 240/415V Rated current (A) 1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63 Tripping curve B, C, D Rated breaking capacity (Icn) 4500A, 6000A Rated frequency 50/60Hz Rated impulse withstand voltage 6.2kV Electro-mechanical endurance 6000 Contact position indication Connection terminal Screw terminal Pillar terminal with clamp Connection capacity Rigid conductor up to 25mm2 Fastening torque 2.0 Nm Installation On symmetrical DIN rail 35mm
Specifications and Feature :
■ Protection against both overload and short circuit
■ High breaking capacity
■ Contact position indication
■ Applicable to terminal and pin/fork type busbar connection
Technical Data :
|
Pole No. |
1, 2, 3, 4 |
|
Rated voltage |
AC 240/415V |
|
Rated current (A) |
1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63 |
|
Tripping curve |
B, C, D |
|
Rated breaking capacity (Icn) |
4500A, 6000A |
|
Rated frequency |
50/60Hz |
|
Rated impulse withstand voltage |
6.2kV |
|
Electro-mechanical endurance |
6000 |
|
Contact position indication |
|
|
Connection terminal |
Screw terminal |
|
Pillar terminal with clamp |
|
|
Connection capacity |
Rigid conductor up to 25mm2 |
|
Fastening torque |
2.0 Nm |
|
Installation |
On symmetrical DIN rail 35mm |
|
Panel mounting |
