Home > Electrical & Electronics > Electric Motor > AC Motor > H-Frame Hydro Oil Steel Metal Stamping Press , 63t / 100t / 160t

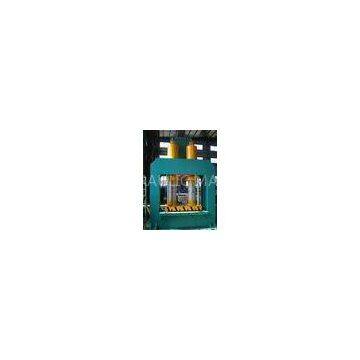

H-Frame Hydro Oil Steel Metal Stamping Press , 63t / 100t / 160t

Wuxi Klt Precision Hydraulic Machinery Factory

H-Frame Hydro Oil Steel Metal Stamping Press , 63t / 100t / 160t thumbnail-1

H-Frame Hydro Oil Steel Metal Stamping Press , 63t / 100t / 160t photo-1

US$ 1000 - 1000 MOQ: 1 Piece

Key Specifications

Get Latest Price

Brand Name:

KLT

Place of Origin:

China

Model Number:

Y35

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Brand Name KLT

Place of Origin China

Model Number Y35

Delivery Time:15-30 days
Certification:ISO & CE

H-Frame Hydro Oil Steel Metal Stamping Press , 63t / 100t / 160t

Quick Detail:

Gantry hydraulic press machine Movable table hydraulic press machine. Package pressing with manual hand operation Apply to industry of clothing, steel metal, plastics product, paper and etc. Hydraulic press model are 63 ton,100 ton, 160 ton, 200 ton

Description:

The machine is widely used in medium-sized motor press-fit,. It is for the rotor and the stator Stator press-fit, silicon positioning, styling and large objects solderless press-fit, rolling, molding. Countertops hydraulic cylinders pushed to the right place. Easy loading and unloading operations. Accurate positioning. Press-fit balance, reliable. It operates with hand.

Applications:
The machine is widely used in medium-sized motor press-fit. It is for the rotor and the stator Stator press-fit, silicon positioning, styling and large objects solderless press-fit, rolling, molding.

Specifications:

Item	Unit	Y35-63T	Y35-100T	Y35-160T	Y35-200T
Nominal Force	KN	630	1000	1600	2000
The maximum stroke of the main cylinder	mm	500	600	800	800
Down velocity of the slipper	mm/s	24.3	25.8	25.5	24.4
Return velocity of the slpper	mm/s	50	50	50	35
Maximum working pressure	Mpa	20	25	25	25
Power of motor	KW	5.5	7.5	11	11
Max opening height	mm	1400	1600	1800	2200
The workbench moving distance	mm	550	650	710	800
Table size(L*W)	mm	800*500	850*600	950*650	1000*1000
Blanking hole diameter	mm	120	150	180	220
The distance of gantry	mm	900	1100	1150	1200
U-shaped slot within maximum depth	mm	130*120	160*250	190*300	230*400
The width of the body
