Evacuated Tube Solar Collector - Heat Pipe

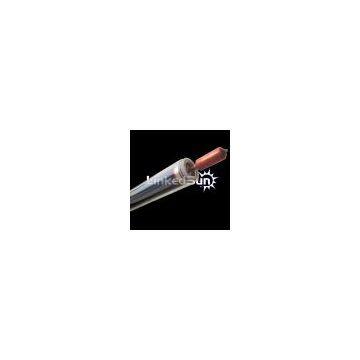

LinkedSun JMC Heat Pipe Solar Collector includes Double Walled Glass Tubes, Copper Heat Pipes with Condenser Bulbs, a manifold, roof connection feet and an adjustable tilt mounting frame.

JMC Solar Collectors can be flush mounted flat against a roof with a suitable pitch, or they can be used with the Tilt Mount Frame to provide the optimum tilt angle on low-pitch, or flat, roofs. To operate properly, LinkedSun Heat Pipe Evacuated Tube Solar Collectors must be installed at an angle of 20 – 75 degrees.

Features and Benefits

• High performance evacuated tube solar collectors

• Available in 10, 12, 15, 18, 20, 22, 24, 25 and 30 panels

• Can be mounted free-standing or on a sloping roof

• Solar keymarked and EN12975-2 certified

• Heat pipes – offer low maintenance

• Easy to install, simple roof fixings

• 7 years warranty, 20+ year lifespan

• Radial absorbers enhance morning and afternoon output

Application

• Residential, service and industrial sector and for public buildings

Specification

• Tube size:                     Ø58 x 1800mm

• Dimension:                   1960 x 2390 x 160mm

• Aperture area:              2.415m²

• η0 (aperture area):        0.77

• Empty weight:               93.5kg

• Connection Fittings:       3/4” Male Thread (BSP)

• Hot water tank size:        250-300liter

• Warranty:                       5years

• Expected Lifetime:         20-30years

• Suitable installation angle: 20-75 degrees
