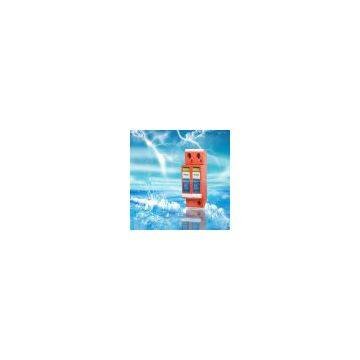

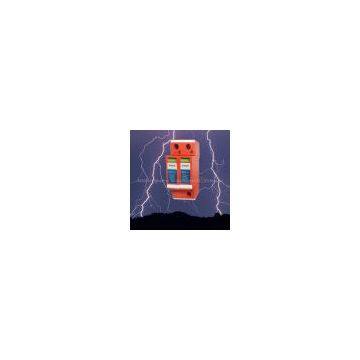

Help Center40KA 220V DC Solar pv System Power Surge Protector
Related Products
-
40KA 1000V Solar Photovoltaic DC Power Surge ProtectorNegotiableMOQ: 1 Piece -
19\" Rack Power Supply PDU Lightning Protection SocketNegotiableMOQ: 1 Piece
-
380V 100KA Three Phase AC Power Surge Protector Lightning ArresterNegotiableMOQ: 1 Piece
-
380V 40KA Three Phase AC Power Surge Protector for Power Distribution SystemNegotiableMOQ: 1 Piece
-
220V 40KA Single Phase Power AC Surge Protector for Power Supply ProjectsNegotiableMOQ: 1 Piece
Safety precautions:
a) When the SPD is installed in final system, it must achieve all the requirements of GB4943 (EN60950, IEC60950) standard;
b) The equipment has to be installed by authorized professional person, before installation, to cut off power supply, and prohibit hot-line work from accidents
c) The load current of protected equipments should be below 10A, or the product will cut off the power automatically, only to push the black button on power line terminal to recover
Application
AM type DC power SPD is to prevent lightning over-voltage and transient over-voltage from damaging DC power system and equipments, which mainly used in mobile communication base, microwave communication base, telecommunication computer room, factory, airport, finance and securities
Also applied in several DC power system, such as DC distribution board, DC power supply equipment, DC distribution box, electronic information system cabinet and the output terminal of second stage power equipment
Features:
1) Temperature control circuit break technology, built-in over-current protection circuit, to completely keep away from fire disaster
2) International famous components and advanced manufacturing technique
3) Big discharger current capacity, low residual voltage
4) Remote alarm connect point(standard)
5) Clear and intuitive working condition
6) Easy installation and maintain
7) Exquisite process, can work under the hostile environment for a long time, like acid, alkali, dust, salt fog, wet, etc
Specification
Model |
AM40-220 |
Nominal operating voltage Un |
220VDC |
Max continuous operating voltage(Uc) |
320VDC |
Nominal discharge current(kA) |
20KA |
Max discharge current(kA) |
40kA |
Protected level |
≤1500V |
Response time |
≤25ns |
flameretardantrating(UL94) |
V0 |
Protection Level |
IP20 |
Telecommand definition |
1-2: NC, 2:COM, 2-3: NO |
NC-COM: NC, COM:COM, NO-COM: NO | |
Dimension(mm) |
Single connection: 90*18*69mm double connection: 90*36*69mm |
Connecting diameter(mm2) |
line: 6 mm2above, ground line: 10 mm2above |
Working conditions |
Temperature:－40～＋85℃; Relative humidity:≤95％(25℃); Elevation≤3km |
Note: For latest information, please contact ANSUN company |
Installation
1) 35mm slide guide installation way,
2) Connect and ground terminal of power system to and ground terminal of SPD, then screw up the bolts
3) ground line of SPD to lightning protection system ground device
4) After wiring, please check it until everything is going well, to put into operation.
Product maintenance
a) The equipment has to be installed by authorized professional person, before installation, to cut off power supply, and prohibit hot-line work from accidents
b) The sectional area of wire must reach technical demands
c) When the SPD box is installed in final system, it must achieve all the requirements of GB4943 (EN60950, IEC60950) standard;
d) The product does not need to be maintained specially, but to inspect at fixed period
e) After thunderstorm season, it is normal that the indicator window is red, but to change a new module or total product instantly
f) Once there is a failure during system operation, please remove the SPD device at first, if the system can operate normally, the device is broken
