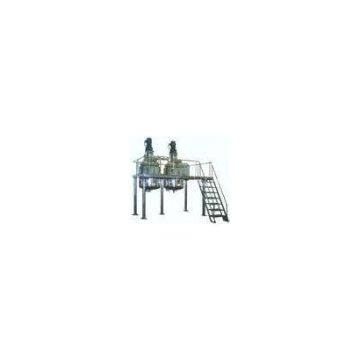

304 SUS Gelatin Melting Tank / Three Layers Of Water Bath Heating / 450L

304 SUS Gelatin Melting Tank / Three Layers Of Water Bath Heating / 450L thumbnail-1
304 SUS Gelatin Melting Tank / Three Layers Of Water Bath Heating / 450L photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
KUN YOU
Place of Origin:
China
Model Number:
450L
Contact Supplier Request Quote Chat Now
KUN YOU Pharmatech Co.,LTD.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name KUN YOU
Place of Origin China
Model Number 450L
Delivery Time:30 days
Certification:CE

304 SUS Gelatin Melting Tank / Three Layers Of Water Bath Heating / 450L

Quick Detail

Product Name

Gelatin Melting Tank

Heating type

Water-bath heating

Application

Paintball /Soft capsule manufacturers

Model

450L

Material

304 SUS

Capacity

650L

Product Description

The Series of gelatin reactor is the essential equipment in gelatin preparation.
The Capacity is from 450L, to 1000L
Main technical data
Vacuum degree in the vessel: 0.02-0.09 Mpa.
Working pressure in the vessel: 0.03-0.05 Mpa.
Examining Pressure in the vessel: 0.Gelatin Melting Tan3-0.4 Mpa.
Working pressure in the jacket: 0.03-0.098 Mpa
Working temperature in tank: 50-100 °C
Conveyor granule: 30 CP
Sealing parts and ring can used more than 3,000 hours continuously.
Insulating layer use super-fine glass cotton.
Inner vessel and insulation layer (covered layer) of the Tank, those sections exposed to raw material are made of 1Cr18Ni9Ti stainless steel.

Application

It’s mainly for softgel making and paintball making enterprises. Besides, the cosmetic manufacturer also needs this to make cosmetics, such as bath beads. And health products manufacturers also need this to make different softgels for the different needs.

Specification

 Model

450L

 Capacity(L)

650

 Melting gelatin(L)

100-450

 Heating area(M2)

3.2

 Max degree of Vacuum(Mpa)

0.09

 Max Temperature(℃)

-100

 Motor Power (KW)

4

 Stirring speed (r/min)

50

 Dimension (mm)

Φ1210X1880

Competitive Advantage

1. Stainless steel construction, multi-layer stirrer.

2. Soft capsule gelatin melting tank, heated by circulated hot water.
3. Water sealed vacuum pump is adopted.
4. Designed with three stainless steel interlayer it, helps for accurate control of the temperature of medicine liquid.
5. Typically designed paddle ensure agitating quickly and mixing uniformly.
6.It’s convenient in installation and cleaning.
Softgel Gelatin Melting Tank, Gelatin Service Tank, Paintball Gelatin Melting Tank
