JASU ISB800A-3 is a one stage injection blow molding machine (not from performs) for PET, PC and PP containers. The machine is capable of accepting 6 cavities.
Fully automatic, single step, injection stretch blow moulding machines produce containers from 0.3 litres up to 1 litres. Widely used for manufacturing bottles for pharmaceutical, healthcare, food, beverages, cosmetics and other applications.
A horizontal three station indexing head contains injection, blowing and outfeed stations which operate simultaneously in a fully automatic cycle. Highly efficient with low energy comsuption.
Suitable for use with a wide range of thermoplastic materials, including PET, PP and PC.
All machines are built to ISO9001 standards and CE certified.
Machine Features
*The machine provides fast molding performance without scrap or connecting lines on bottle bottom or side.
*Maximum uniformity of bottle weight, thickness and volume.
*Bottle body, neck and mouth can be varied to meet specific requirements.
*Extremely smooth and elegant bottle surface is ideal for high-quality and high-price packaging.
*This high production machine is capable of producing bottles in multiple cavities at one time.
*Suitable for various materials, such as PET, PE, PP, PS, PC, PETG, PMMA, etc.
*producing various types of bottles.
*Multiple-stage injection
One-step Injection Blow Molding Machine ISB800A-3 Parameters
Raw Material PP,PC,PET,PCTG,Tritan
Pressure System: 140KG
Screw Diamete: 40mm
Max.Injection Weight: 195g
Max Injection Pressure: 1504kg/cm2
Max. plasticating capacity: 14g/s
Injection Mold Clamping Force: 60T
Injection Mold Trip: 430mm
Blowing Mold Clamping Force: 80kn
Blowing Mold Trip: One-side 60mm
Rotary Plate Trip: 0-360o
Stretching System Trip: 150mm-170mm
Ejection System Trip: 150mm-170mm
Injection Mould Dimensions: L500xW200
Ejection Trip: 150mm-170mm
Max. Height of Bottle: 145mm
Oil Pump Motor Power: 18.5kw
Barrel and Mould Heating Power: Barrel 9 kw、Mould based on bottles
Gross Power: 30kw
Working Power: 3kw
Center Height: 1.4m
Overall Dimensions: L3.8xW1.45xH3.1m
Weight: 5T
One-step Injection Blow Molding Machine ISB800A-3 Configuration
Oil pump: TaiWan
Hydraulic valve: YUKEN(Japan)
Hydraulic hose: China
hammer pipe: China
Hydraulic joint: China
Cylinder seals: China
Blowing valve: AirTAC(TaiWan)
Low-pressure cylinder: AirTAC(TaiWan)
low-pressure valve: AirTAC(TaiWan)
Air Pipe and connector: China
PLC: JASU(TaiWan)
Display screen: JASU(TaiWan)
Air switch: Schneider(Shanghai)
Oil pump motor: China
Servo motor: Speecon(TaiWan)
Reducer: Li-ming(TaiWan)
Photoelectric sensors: China
Safety Gate Switch: Carlo Gavazzi(China)
Safety relay: Schneider(Shanghai)
linear displacement sensors: Carlo Gavazzi (Switzerland)

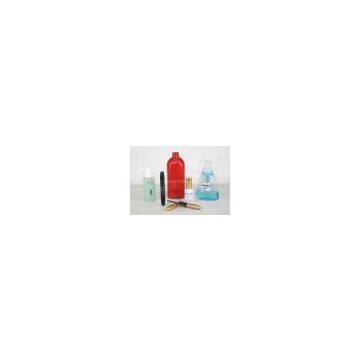

Product Application
Cosmetic bottle
Medical bottle
Pharmaceutical bottle
Health-care bottle
Sport bottle/Space bottle
Baby feeding bottle
Jars
Lampshade
